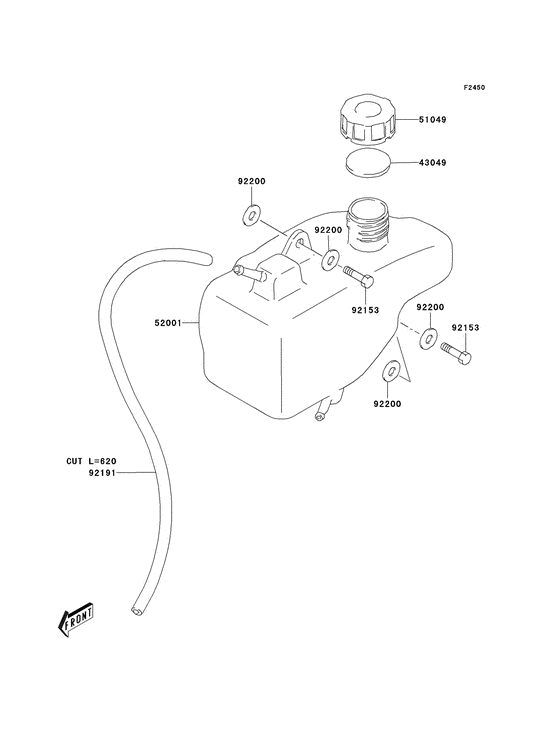

Oil tank Diagram Kawasaki KSF80 KFX 80

Model code
KSF80A6F
Engine Capacity
79
Year
2006
Sales region
USA
Power
4 hp
Stroke (2-stroke or 4-stroke)
2 stroke
2WD/4WD/AWD
2WD

Difficulties in parts search?

Parts list
Oil tank

Difficulties in parts search?

Oil tank
Description OEM Part # Price
43049
43049

43049-S005

PACKING,OIL TANK CAP

Packing,oil tank cap;

43049-S005

US $4

replacement
43049
43049

43049-S019

Packing,Oil Tank Cap

Packing,oil tank cap;

43049-S019

US $6.99

51049
51049

51049-S006

CAP-TANK

51049-S006

US $9.49

52001
52001

52001-S002

TANK-OIL

52001-S002

US $45.50

92153
92153

92153-S224

BOLT,OIL TANK

Bolt,oil tank;

92153-S224

US $1.78

92191
92191

92191-S050

TUBE,BRAKE BREATHER

Tube,brake breather;

92191-S050

US $17.28

92200
92200

92200-S118

WASHER,OIL TANK

Washer,oil tank;

92200-S118

US $1.13
