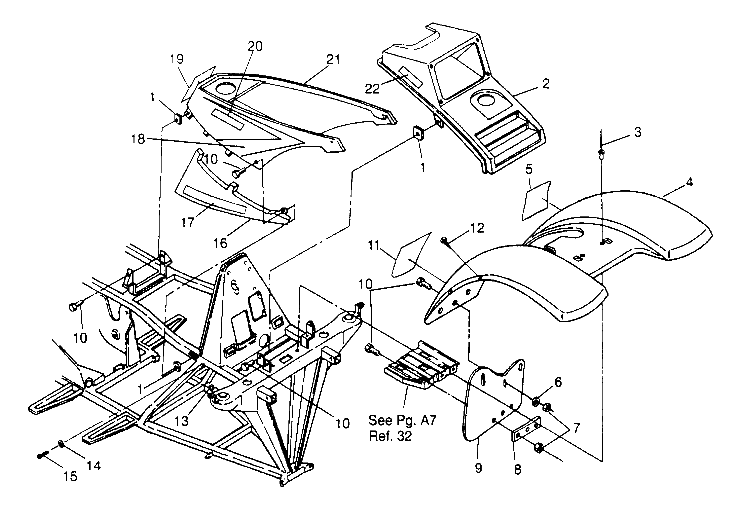

Front cab assembly (2x4 400L W947540) Diagram Polaris 400L 2X4
- Model code
- W947540
- Year
- 1994
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
2
|
2
5431202-136
Cover,,h/l.
P.RED; |
5431202-136 |
— | ||
|
3
|
3
7621457 Rivet(50)50; |
7621457 |
US $1.89 |
||
|
4
|
4
2631610-136
Cab asm,fr.liq-4wh,red
Incl. 5,11; |
2631610-136 |
— | ||
|
5
|
5
7072693
Decal,warning
No Longer Available; CPSC; |
7072693 |
— | ||
|
6
|
6
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
7
|
7
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
8
|
8
5211131-067 Brkt, lh mud flap |
5211131-067 |
US $30.42 |
||
|
9
|
9
5850082-070 Mudflap,frt,lh,blk, |
5850082-070 |
US $14.28 |
||
|
9
|
9
5850092-070 Mudflap,frt,rh,blk, |
5850092-070 |
US $13.20 |
||
|
10
|
10
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
11
|
11
7074608 Decal,warn,discret.CPSC; |
7074608 |
US $15.02 |
||
|
12
|
12
7670052 Clip, push-on10; |
7670052 |
US $2.45 |
||
|
13
|
13
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
13
|
13
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
14
|
14
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
15
|
15
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
16
|
16
5430970-143
Cover,lh pan
L.GREY; |
5430970-143 |
— | ||
| replacement | |||||
|
16
|
16
5433382-143
New Genuine Part
L.GREY; |
5433382-143 |
— | ||
|
16
|
16
5430971-143
Cover,rh,pan.
L.GREY; |
5430971-143 |
— | ||
| replacement | |||||
|
16
|
16
5433579-143 Cover-side panel,rh,gen2,lt grL.GREY; |
5433579-143 |
US $71.89 |
||
|
17
|
17
7074231
Decal,rh,sidepanel
|
7074231 |
— | ||
|
17
|
17
7074230
Decal,lh,sidepanel
|
7074230 |
— | ||
|
18
|
18
7074229
Decal,rh,tankside
|
7074229 |
— | ||
|
18
|
18
7074228
Decal,lh,tankside
|
7074228 |
— | ||
|
19
|
19
7072933
Decal,age warn.
CPSC; |
7072933 |
— | ||
| replacement | |||||
|
19
|
19
7078253
Decal, age warning
CPSC; |
7078253 |
— | ||
|
20
|
20
7074250
Decal,`liquid cooled`
|
7074250 |
— | ||
|
21
|
21
5431263-143
Cover,fueltank,grey
|
5431263-143 |
— | ||
|
22
|
22
7074227
Decal,`polaris`h/l pod
|
7074227 |
— | ||
