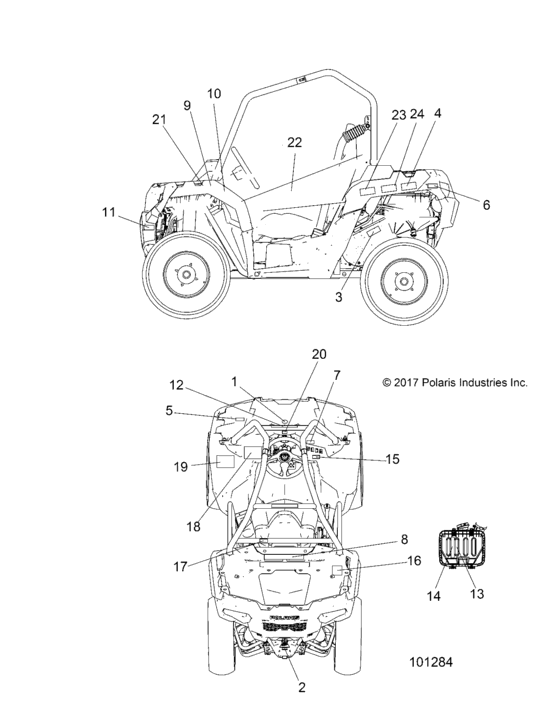

Body, Decals (A18DAE57B2 (101284)) Diagram Polaris ACE 570
- Model code
- A18DAE57B2
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
2
|
2
7170509 Decal-hitch |
7170509 |
US $2.28 |
||
|
3
|
3
7177469 Decal-belt,caution/check |
7177469 |
US $3.06 |
||
|
4
|
4
7186864 DECAL-RR.FNDR,REAR,ACE,LH |
7186864 |
US $16.24 |
||
|
4
|
4
7186865 DECAL-RR.FNDR,REAR,ACE,RH |
7186865 |
US $16.24 |
||
|
5
|
5
7180538 DECAL-STORG.CAP,120 LBS |
7180538 |
US $4.74 |
||
|
6
|
6
7185221 DECAL-REFLECTOR,RED |
7185221 |
US $4.34 |
||
|
7
|
7
7185103
Decal-Ignition,lights
|
7185103 |
— | ||
|
8
|
8
7186083
Decal-Warn,pass/tire Pr,ace
|
7186083 |
— | ||
|
9
|
9
7186854 DECAL-FR.FNDR,SIDE,TOP,LH |
7186854 |
US $11.24 |
||
|
9
|
9
7186855 DECAL-FR.FNDR,SIDE,TOP,RH |
7186855 |
US $11.24 |
||
|
10
|
10
7187410 DECAL-FR.FNDR,REAR,LH |
7187410 |
US $9.15 |
||
|
10
|
10
7187411 DECAL-FR.FNDR,REAR,RH |
7187411 |
US $9.15 |
||
|
11
|
11
7184044 DECAL-REFLECTOR,AMBER |
7184044 |
US $2.66 |
||
|
12
|
12
7184215 DECAL-CAB FRAME,POLARIS,WHITE |
7184215 |
US $7.09 |
||
|
13
|
13
7180122 DECAL-CAUTION HEADER,AIRBOX |
7180122 |
US $2.49 |
||
|
14
|
14
7181728 DECAL-CAUTION INFO,AIRBOX |
7181728 |
US $2.66 |
||
|
15
|
15
7186123
Decal-Warn,max Payload,ace
|
7186123 |
— | ||
|
16
|
16
7186122
Decal-Warn,never Carry Fuel
|
7186122 |
— | ||
|
17
|
17
7183178 DECAL-ROPS,ACE |
7183178 |
US $2.28 |
||
|
18
|
18
7185101
Decal-Warn,proper Use,1 Oc
|
7185101 |
— | ||
|
19
|
19
7185102
Decal-Warn,seatbelt/drv/riders
|
7185102 |
— | ||
|
20
|
20
7180947 DECAL-EPS,PREMIUM |
7180947 |
US $3.64 |
||
|
21
|
21
7187272 DECAL-FR.FNDR,SIDE,570,LH |
7187272 |
US $17.24 |
||
|
21
|
21
7187273 DECAL-FR.FNDR,SIDE,570,RH |
7187273 |
US $17.24 |
||
|
22
|
22
7186858 DECAL-DOOR,LH |
7186858 |
US $17.24 |
||
|
22
|
22
7186859 DECAL-DOOR,RH |
7186859 |
US $17.24 |
||
|
23
|
23
7186860 DECAL-RR.FNDR,FRONT,LH |
7186860 |
US $17.24 |
||
|
23
|
23
7186861 DECAL-RR.FNDR,FRONT,RH |
7186861 |
US $17.24 |
||
|
24
|
24
7186862 DECAL-RR.FNDR,MID,LH |
7186862 |
US $11.24 |
||
|
24
|
24
7186863 DECAL-RR.FNDR,MID,RH |
7186863 |
US $11.24 |
