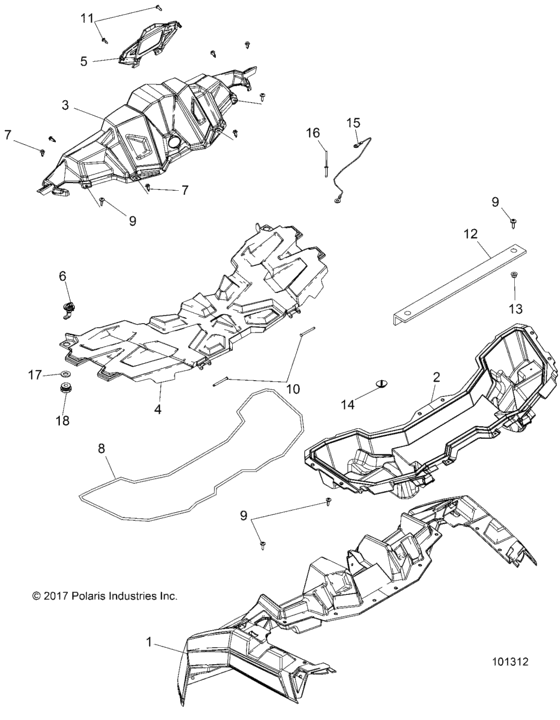

Body, Hood And Front Body Work (A18DAE57N5 (101312)) Diagram Polaris ACE 570 EFI PS HD
- Model code
- A18DAE57N5
- Year
- 2018
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2636882-689 Asm-Cab Fr,svc,hdpe,intl,v.bluINCL. WARNING DECAL |
2636882-689 |
US $541.64 |
||
|
2
|
2
5454119-070 BIN-STORAGE,FRONT,BLK |
5454119-070 |
US $121.71 |
||
|
3
|
3
5450064-070 PANEL-CAB,UPPER,BLK |
5450064-070 |
US $127.05 |
||
|
4
|
4
5450073-070 COVER-BOX,FRONT,BLK |
5450073-070 |
US $155.98 |
||
|
5
|
5
5451949 PANEL-DASH,KYSTN,ACE |
5451949 |
US $22.45 |
||
|
6
|
6
5451143 LATCH-1/4 TURN |
5451143 |
US $23.61 |
||
|
7
|
7
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
8
|
8
5522023 SEAL-BOX,FRONT |
5522023 |
US $19.69 |
||
|
9
|
9
7519650 Scr-txth-m6x1.0x25 rie |
7519650 |
US $1.89 |
||
|
10
|
10
5134576 Pin-hinge,front |
5134576 |
US $5.22 |
||
|
11
|
11
7519045 Scr-tx truss-#14x3/4,hi/lo zbk |
7519045 |
US $2.63 |
||
|
12
|
12
5263628-329 BRACE-ANGLE,625MM,ECOAT |
5263628-329 |
US $32.52 |
||
|
13
|
13
7547339
Nut-m6x1,0,flg-nyloc-olive d
|
7547339 |
— | ||
|
14
|
14
5412981 Plug-compartment |
5412981 |
US $3.94 |
||
|
15
|
15
7082262 CABLE-LID,FRONT,HOOK |
7082262 |
US $25.43 |
||
|
16
|
16
7621334 Rivet(50) |
7621334 |
US $187.50 |
||
|
17
|
17
7555919 Washer |
7555919 |
US $6.21 |
||
|
18
|
18
5413428 Grommet-latch |
5413428 |
US $1.98 |
