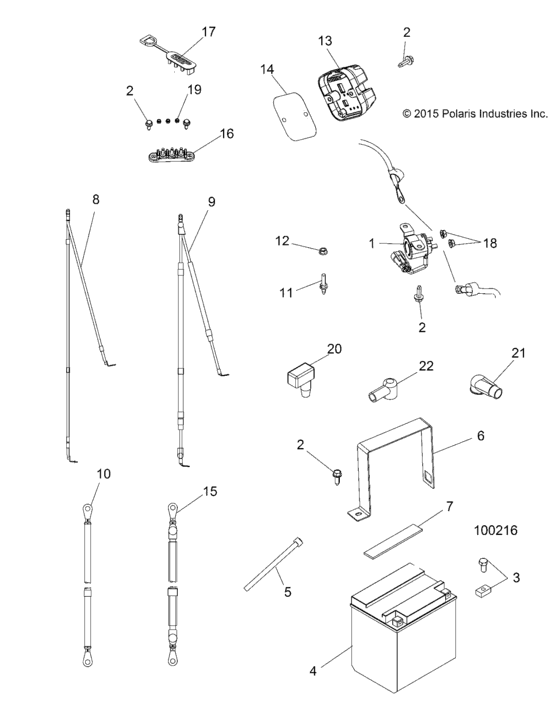

Electrical, Battery (A16DAE87AL (100216)) Diagram Polaris ACE 900 EFI EPS
- Model code
- A16DAE87AL
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4012001 Solenoid-starter-c1100 |
4012001 |
US $118.11 |
||
| replacement | |||||
|
1
|
1
4014471 Solenoid-starter,c1100,w/wshr |
4014471 |
US $118.11 |
||
|
2
|
2
7518529 Scr-m6x1,0x20,hxhd,flg,tdfm,bl |
7518529 |
US $1.89 |
||
|
3
|
3
2202213 Kit-battery bolt (long) |
2202213 |
US $2.28 |
||
|
4
|
4
4015955 BATTERY-SEALED,32 AH,500 CCAOPT |
4015955 |
US $265.88 |
||
|
4
|
4
4014609 BATTERY-30AH,12 VOLT,AGM |
4014609 |
US $227.38 |
||
|
5
|
5
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
6
|
6
5258191
BRKT-BATTERY STRAP
|
5258191 |
— | ||
|
7
|
7
5810455 Pad |
5810455 |
US $1.66 |
||
|
8
|
8
4015545 CABLE-BATT,6GA,BK,BAT/CHASS/TB |
4015545 |
US $50.09 |
||
|
9
|
9
4015546 CABLE-BATT,6GA,RD,BATT/SOL/TB |
4015546 |
US $58.61 |
||
|
10
|
10
4014423-940 CABLE-BATT,6GA,BK,FLAT,FLAT,M6 |
4014423-940 |
US $18.29 |
||
|
11
|
11
7519333 Stud-m6x1.0x19-m6 taptite |
7519333 |
US $6.69 |
||
|
12
|
12
7547274 Nut-m6 flange,nylok |
7547274 |
US $3.94 |
||
|
13
|
13
4015229 REG-3PH,50A,SERIES,HISPD,TCAP |
4015229 |
US $274.14 |
||
|
14
|
14
5253294 Cover-voltage regulator |
5253294 |
US $2.85 |
||
|
15
|
15
4014424-990 CABLE-BATT,6GA,RD,FLAT,FLAT,M6INCL. 22 |
4014424-990 |
US $26.92 |
||
|
16
|
16
4011892 Block-terminal,3 post |
4011892 |
US $13.20 |
||
|
17
|
17
4014659 Cover-terminal block,3 post |
4014659 |
US $7.09 |
||
|
18
|
18
7546703
Nut,nylok
|
7546703 |
— | ||
|
19
|
19
7547341 Nuts-10-32 keps |
7547341 |
US $0.79 |
||
|
20
|
20
4014836 BOOT-BATTERY,RED |
4014836 |
US $5.92 |
||
|
21
|
21
4014994 BOOT-BATTERY,RED |
4014994 |
US $4.94 |
||
|
22
|
22
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
