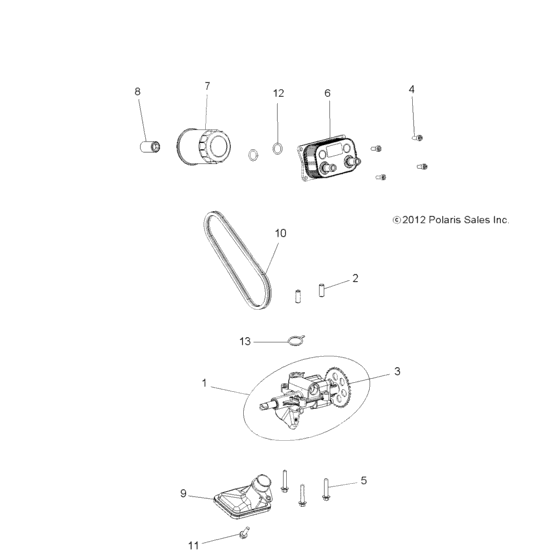

Engine, Oil Pump And Oil Cooler (A16DAE87AL (49RGROILPUMP13900XP)) Diagram Polaris ACE 900 EFI EPS
- Model code
- A16DAE87AL
- Year
- 2016
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1204762
Asm-pump,oil,wet sump
INCL. 3 |
1204762 |
— | ||
|
2
|
2
7661975 Dowel, hollow, oil pump |
7661975 |
US $2.98 |
||
|
3
|
3
6230448
Sprocket-oil pump,g-90
|
6230448 |
— | ||
|
4
|
4
7519303 Scr-sh-m6x1.0x16 8.8 zpy d204 |
7519303 |
US $1.49 |
||
|
5
|
5
7516827
Screw
|
7516827 |
— | ||
|
6
|
6
1240821 COOLER-OIL TO WATER,5 |
1240821 |
US $103.97 |
||
|
7
|
7
2540086 Filter-oil,10 micron,(12) |
2540086 |
from US $14.77 |
||
|
8
|
8
2521530 ADAPTOR-FILTER,STRAIGHT |
2521530 |
US $21.12 |
||
|
9
|
9
2521158
Pickup-oil pump,wet sump
|
2521158 |
— | ||
|
10
|
10
3222191 Chain-oil pump drive,g-90 |
3222191 |
US $39.38 |
||
| replacement | |||||
|
10
|
10
3225043 Chain-oil pump drive,g-90 |
3225043 |
US $39.38 |
||
|
11
|
11
7519236
Scr-hxfl-m6x1.0x16 8.8 zyl nyl
|
7519236 |
— | ||
|
12
|
12
5413837 O-ring,.612x.818x.103 |
5413837 |
US $5.27 |
||
|
13
|
13
3610186 Seal-oil pump |
3610186 |
US $5.92 |
||
