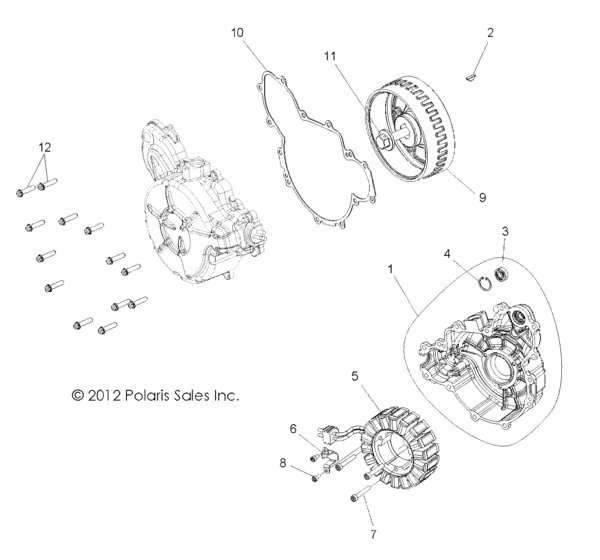

Engine, Stator And Cover (A16DAE87AL (49RGRMAGNETOCVR13900XP)) Diagram Polaris ACE 900 EFI EPS
- Model code
- A16DAE87AL
- Year
- 2016
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1204518 Asm-ign cover,starter brgINCL. 3,4 |
1204518 |
US $164.24 |
||
|
2
|
2
7721122 Key,woodruff |
7721122 |
US $5.18 |
||
|
3
|
3
3514717 Bearing-ball,9x24x7 |
3514717 |
US $8.87 |
||
|
4
|
4
7710654 Ring-snap,din472,24x1.2mm |
7710654 |
US $14.09 |
||
|
5
|
5
4014839 STATOR-660W |
4014839 |
US $792.40 |
||
|
6
|
6
5255473 Brkt-retainer,wire |
5255473 |
US $4.34 |
||
|
7
|
7
7510005 Scr-m6x1,0x40,hx/soc/cp-y/d |
7510005 |
US $2.92 |
||
|
8
|
8
7517847 Scr-m5x0,8x10 soc/cp-d |
7517847 |
US $3.94 |
||
|
9
|
9
4014688 FLYWHEEL |
4014688 |
US $289.52 |
||
|
10
|
10
5814160 GAKSET-COVER,MAG |
5814160 |
US $50.19 |
||
|
11
|
11
7519170 Scr-m12x1.25x39,rotor,xdrill |
7519170 |
US $16.24 |
||
|
12
|
12
7519297 Screw |
7519297 |
US $1.49 |
