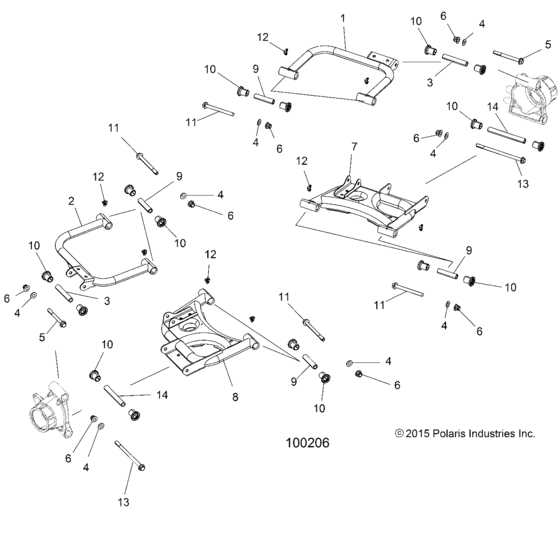

Suspension, Rear Control Arms (A16DAE87AL (100206)) Diagram Polaris ACE 900 EFI EPS
- Model code
- A16DAE87AL
- Year
- 2016
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1018121-458 Weld-cntrl arm,uppr,rr,lh,blk |
1018121-458 |
US $115.80 |
||
|
2
|
2
1018123-458 Weld-cntrl arm,upper,rr,rh,blk |
1018123-458 |
US $115.80 |
||
|
3
|
3
5138794 Shaft-pivot,89.71mm,15.88odFROM 11/10/15 |
5138794 |
US $5.25 |
||
|
3
|
3
5137592 Shaft-pivot,89.71mm,zinc yelTO 11/9/15 |
5137592 |
US $7.88 |
||
|
4
|
4
7556153 Washer,3/8 fw |
7556153 |
US $32.70 |
||
|
5
|
5
7518566 Bolt-m10x1,25x115,hxflg-olived |
7518566 |
US $9.85 |
||
|
6
|
6
7547333 Nut-m10x1,25,flg,nyloc-olive d |
7547333 |
US $39.40 |
||
|
7
|
7
1018115-458
Weld-cntrl arm,lwr,rear,lh,blk
|
1018115-458 |
— | ||
|
8
|
8
1018116-458
Weld-cntrl arm,lwr,rear,rh,blk
|
1018116-458 |
— | ||
|
9
|
9
5138797 Shaft-pivot,70.99mm,15.88od |
5138797 |
US $10.48 |
||
|
10
|
10
5439874 Bushing-standard,orv |
5439874 |
US $39.40 |
||
|
11
|
11
7519043 Scr-hxfl-m10x1,25x95 10,9 zod |
7519043 |
US $7.68 |
||
|
12
|
12
7080510 Fitting, zerk,90 degree |
7080510 |
US $7.68 |
||
|
13
|
13
7519042 Scr-hxfl-m10x1,25x165 10,9 zod |
7519042 |
US $13.09 |
||
|
14
|
14
5138796 Shaft-pivot,139.1mm,15.88odFROM 11/10/15 |
5138796 |
US $11.81 |
||
|
14
|
14
5336724 Tube-pivotTO 11/9/15 |
5336724 |
US $14.28 |
