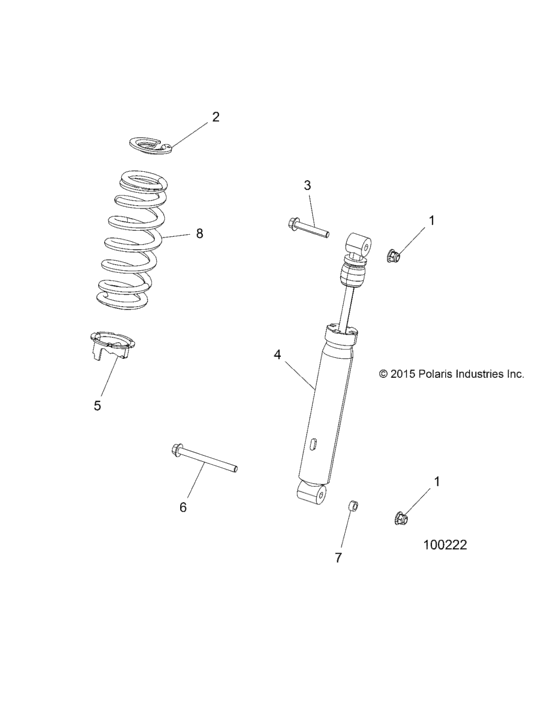

Suspension, Rear Shock Mounting (A16DAE87AL (100222)) Diagram Polaris ACE 900 EFI EPS
- Model code
- A16DAE87AL
- Year
- 2016
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547333 Nut-m10x1,25,flg,nyloc-olive d |
7547333 |
US $39.40 |
||
|
2
|
2
5251753 Retainer-spring,steel |
5251753 |
US $12.79 |
||
|
3
|
3
7518563 Bolt-m10x1,25x60,hxflg-olive d |
7518563 |
US $4.73 |
||
|
4
|
4
7043759 Shock-rear, txc |
7043759 |
US $118.06 |
||
|
5
|
5
5253768 Cam-adjusting,spring,steel |
5253768 |
US $17.24 |
||
|
6
|
6
7518610 Bolt-m10x1,25x100,hxflg,olv d |
7518610 |
US $15.26 |
||
|
7
|
7
5334945 Spacer-,625x,407x,375 |
5334945 |
US $3.26 |
||
|
8
|
8
7044538-133 SPRING-REAR,WHT |
7044538-133 |
US $65.99 |
