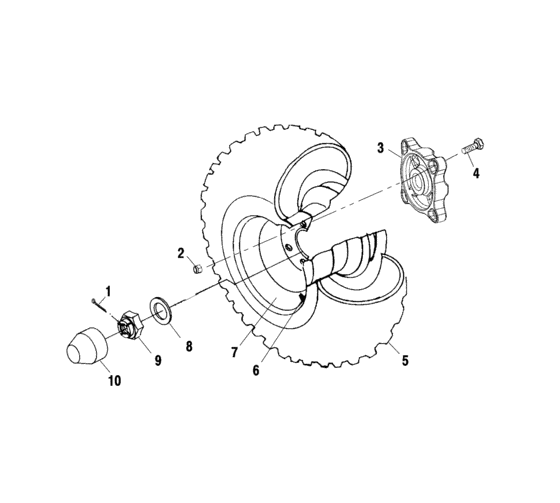

Rear wheel drive (C02CD50AC) Diagram Polaris ATV PRO 500 4X4 PPS
- Model code
- C02CD50AC
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
2
|
2
7542459 Nut, flanged(10) |
7542459 |
US $65.60 |
||
|
3
|
3
5131649-067
Hub-rear wheel,mach,blk
|
5131649-067 |
— | ||
|
4
|
4
7515513 Stud(10) * |
7515513 |
US $19.60 |
||
|
5
|
5
5411949
Tire, 25x11-12
|
5411949 |
— | ||
|
6
|
6
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
7
|
7
1520457-067 Rim,rear,12x8,black |
1520457-067 |
US $152.65 |
||
|
8
|
8
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
9
|
9
7543005 Nut, castle |
7543005 |
US $9.84 |
||
|
10
|
10
5411164
Cover, dust, hub
|
5411164 |
— |
