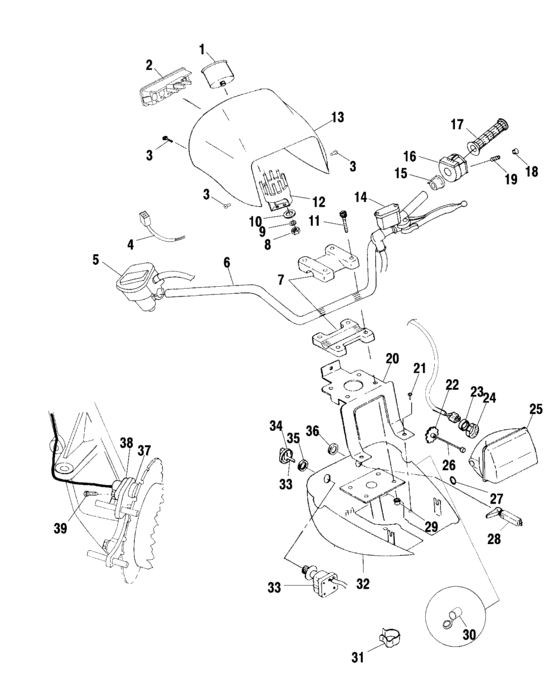

Handlebar and headlight pod (A01CL50AA) Diagram Polaris BIG BOSS 500 6X6 INTL
- Model code
- A01CL50DA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3280363 Speedometer,3,38",6-pulseAA; |
3280363 |
US $537.67 |
||
|
1
|
1
3280312
Speedo,asm,kilo,3.38" 6-pulse
DA; |
3280312 |
— | ||
| replacement | |||||
|
1
|
1
3280358
Speedometer, kph
DA; |
3280358 |
— | ||
|
2
|
2
4010416 Bulb-indicator,hobbs |
4010416 |
US $10.83 |
||
|
2
|
2
4010459
Panel-indicator,svc,std pvt
|
4010459 |
— | ||
|
3
|
3
7511881 Screw(10)10; |
7511881 |
US $26.30 |
||
|
4
|
4
2460668 Harness,ctr,pnl, |
2460668 |
US $14.18 |
||
|
6
|
6
5244581-067 Tube,hndlbr,blk |
5244581-067 |
US $77.98 |
||
|
7
|
7
2200774
Kit,h`bar block
Incl. Blocks and 7,11,29; |
2200774 |
— | ||
|
7
|
7
5630616-067
Block,h'bar retainer,blk
|
5630616-067 |
— | ||
|
8
|
8
7541933 Nut10; |
7541933 |
US $2.45 |
||
|
9
|
9
7555868 Washer, lock,(s,s,)S.S.;10; |
7555868 |
US $2.45 |
||
|
10
|
10
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
11
|
11
7515189 Screw(10) *10; |
7515189 |
US $1.89 |
||
|
12
|
12
3280291
Clamp,back,elec,speedo,3,38"
|
3280291 |
— | ||
|
13
|
13
5433763-195
Pod, headlight, upper
|
5433763-195 |
— | ||
|
15
|
15
5433903 Spacer-switch,lh,99 |
5433903 |
US $10.61 |
||
|
16
|
16
4010262 Switch-handlebar,h/l/o,rev/or |
4010262 |
US $177.26 |
||
|
17
|
17
5433834-070 Grip-hndlbar,7/8 id,black |
5433834-070 |
US $16.24 |
||
|
18
|
18
5432952 Plug,hole10; |
5432952 |
US $3.15 |
||
|
19
|
19
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
20
|
20
5244969-067
Brkt-pod mounting,blk
|
5244969-067 |
— | ||
|
21
|
21
7517317 Screw(10)10; |
7517317 |
US $0.79 |
||
|
22
|
22
4032079 Knob,adjusting |
4032079 |
US $18.32 |
||
|
23
|
23
5411120 Boot,headlight |
5411120 |
US $20.69 |
||
|
24
|
24
4032077 Collar,lock |
4032077 |
US $20.69 |
||
|
25
|
25
4032075 Asm,headlight w/adjust rod-knob |
4032075 |
US $107.52 |
||
|
25
|
25
2870448 Bulb,quartz,h/l h4,60/55w |
2870448 |
US $21.35 |
||
|
26
|
26
4032078
Rod,adjusting
|
4032078 |
— | ||
|
27
|
27
5410163 O ring (10) |
5410163 |
US $2.28 |
||
|
28
|
28
7081008 Cable-choke,friction,40" |
7081008 |
US $70.89 |
||
|
29
|
29
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
30
|
30
4010283 Receptacle-pod mnt,12 volt |
4010283 |
US $18.32 |
||
|
31
|
31
7080631 Clip,cable retain,(10) *10; |
7080631 |
US $9.38 |
||
|
32
|
32
5433762-070 Pod-headlight,lower,snap,blk |
5433762-070 |
US $91.60 |
||
|
33
|
33
4110264
Switch, ignition
Incl. Key; |
4110264 |
— | ||
|
33
|
33
4010278 Key blank (20/21/67/68) series6700&6800 SERIES; |
4010278 |
US $12.81 |
||
|
33
|
33
4010321 Key blank (22/23/27/28) series2700&2800 SERIES; |
4010321 |
US $14.77 |
||
|
34
|
34
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
35
|
35
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
36
|
36
7080922 Nut,choke,m24x1,5 thd,m29 hex |
7080922 |
US $4.73 |
||
|
37
|
37
5132382 Cap-hall sensor |
5132382 |
US $16.24 |
||
|
38
|
38
4010298 Sensor,hall effect |
4010298 |
US $91.60 |
||
|
39
|
39
7517658 Screw |
7517658 |
US $3.75 |
||
