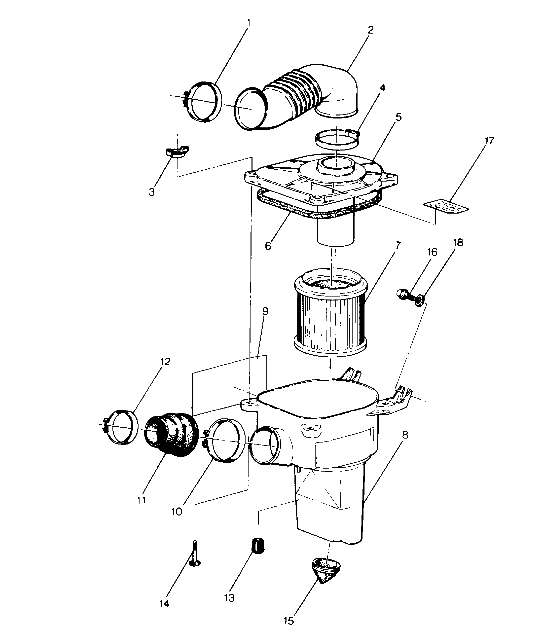

Air box assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080337
Clamp
|
7080337 |
— | ||
|
2
|
2
5410454
Tube,air intake
|
5410454 |
— | ||
|
3
|
3
7542127 Nut,wing(10)10; |
7542127 |
US $1.89 |
||
|
4
|
4
7080336
Clamp,air box
|
7080336 |
— | ||
|
5
|
5
5430884
Cover,air intake
|
5430884 |
— | ||
|
6
|
6
5410484
Seal,air intake
|
5410484 |
— | ||
|
7
|
7
7080353
Filter,air intake
|
7080353 |
— | ||
| replacement | |||||
|
7
|
7
2200280 Kit,air filter,(atv) |
2200280 |
US $28.14 |
||
|
8
|
8
5430883
Box,air intake
|
5430883 |
— | ||
| replacement | |||||
|
8
|
8
5431124
Box, air intake*
|
5431124 |
— | ||
|
9
|
9
5810310
Tape, foil
|
5810310 |
— | ||
|
10
|
10
7080173
Band clamp
|
7080173 |
— | ||
|
11
|
11
5410462 Boot,carburetor |
5410462 |
US $19.69 |
||
|
12
|
12
7080140
Clamp
10; |
7080140 |
— | ||
|
13
|
13
5410473
Bumper,intake
|
5410473 |
— | ||
| replacement | |||||
|
13
|
13
5410529
Bushing
|
5410529 |
— | ||
|
14
|
14
7512275 Bolt-carriage10; |
7512275 |
US $2.45 |
||
|
15
|
15
5410453
Valve, vacuator
|
5410453 |
— | ||
|
16
|
16
7512246
Bolt
10; |
7512246 |
— | ||
|
17
|
17
7072402
Decal,air filter
No Longer Available; |
7072402 |
— | ||
|
18
|
18
7558301 Washer, flat(10) *10;Mounting; |
7558301 |
US $0.79 |
||
