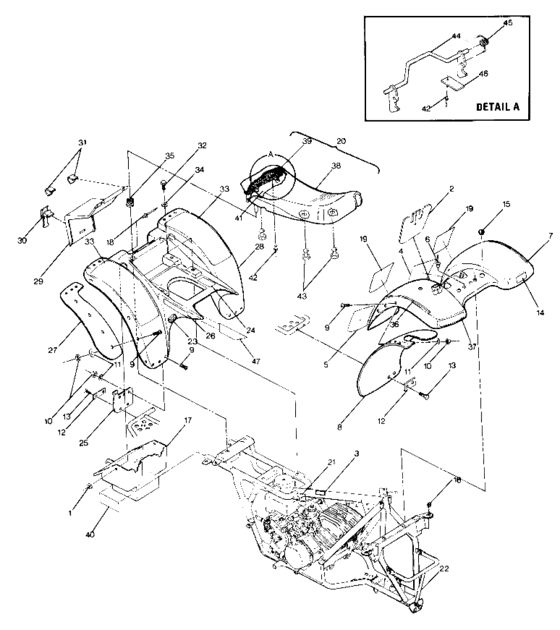

Body assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
2
|
2
5850070
Flap,splashguard
|
5850070 |
— | ||
|
3
|
3
7072431
Decal, manf.
No Longer Available; |
7072431 |
— | ||
|
4
|
4
7072387
Decal,op.wrng.
No Longer Available; FR.;French; |
7072387 |
— | ||
|
5
|
5
7072388
Decal,op.wrng. (english}
No Longer Available; ENG; |
7072388 |
— | ||
|
6
|
6
7621457 Rivet(50)50; |
7621457 |
US $1.89 |
||
|
7
|
7
5430888
Cab, front
|
5430888 |
— | ||
| replacement | |||||
|
7
|
7
2631549-133
Cab,fr,white
|
2631549-133 |
— | ||
|
8
|
8
5850073
Mudflap,lh front
|
5850073 |
— | ||
|
8
|
8
5850074
Mudflap,rh front
|
5850074 |
— | ||
|
9
|
9
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
10
|
10
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
11
|
11
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
12
|
12
5211020
Bracket,mud flap
|
5211020 |
— | ||
| replacement | |||||
|
12
|
12
5211020-067
Brkt,rh mud flap
|
5211020-067 |
— | ||
|
13
|
13
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
14
|
14
7073024
Label, 'u,s,a,'
|
7073024 |
— | ||
|
15
|
15
5430887 Plug, rack hole |
5430887 |
US $2.28 |
||
|
16
|
16
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
16
|
16
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
17
|
17
5430882
Box,tool comp,
|
5430882 |
— | ||
|
18
|
18
7621401
Rivet
50; |
7621401 |
— | ||
| replacement | |||||
|
18
|
18
7621467 Rivet, blind(50) *50; |
7621467 |
US $262.50 |
||
|
19
|
19
7072409
Decal,rh,fr.fender
|
7072409 |
— | ||
|
19
|
19
7072422
Decal,lh,fr.fender
|
7072422 |
— | ||
|
20
|
20
2681286
Seat asm.
ATV;Incl. 38, 39, 41, 43, 52; |
2681286 |
— | ||
| replacement | |||||
|
20
|
20
2681240
Seat asm,
ATV;Incl. 38, 39, 41, 43, 52; |
2681240 |
— | ||
|
21
|
21
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
22
|
22
2670101
Bumper,front,weld.
|
2670101 |
— | ||
| replacement | |||||
|
22
|
22
2670101-116
New Genuine Part
|
2670101-116 |
— | ||
|
23
|
23
7072315
Decal,shift,blue
No Longer Available; |
7072315 |
— | ||
|
24
|
24
7072403
Decal,filter element
No Longer Available; |
7072403 |
— | ||
|
25
|
25
5850066
Flap,mud,rh rear
|
5850066 |
— | ||
|
25
|
25
5850062
Flap,mud,lh rear
|
5850062 |
— | ||
|
26
|
26
7072406
Decal,250x
|
7072406 |
— | ||
|
27
|
27
5850060
Flap,mud,lh rear
|
5850060 |
— | ||
|
27
|
27
5850061
Flap,mud,rh rear
|
5850061 |
— | ||
|
28
|
28
5430886
Cab, rear
|
5430886 |
— | ||
| replacement | |||||
|
28
|
28
5430991-133
Cab,rear,white
|
5430991-133 |
— | ||
|
29
|
29
5430910
Lid,tool box
|
5430910 |
— | ||
|
30
|
30
5410425 Strap,tool compartment |
5410425 |
US $9.15 |
||
|
31
|
31
7670050 Clip, lid hinge10; |
7670050 |
US $1.89 |
||
|
33
|
33
7072410
Decal,lh,r.fender
No Longer Available; |
7072410 |
— | ||
|
33
|
33
7072411
Decal,rh,r.fender
No Longer Available; |
7072411 |
— | ||
|
35
|
35
5410413
Grommet
|
5410413 |
— | ||
|
36
|
36
7072404
Decal,lh,fr.susp.
No Longer Available; |
7072404 |
— | ||
|
36
|
36
7072405
Decal,rh,fr.susp.
No Longer Available; |
7072405 |
— | ||
|
37
|
37
7072374
Decal,`polaris`
No Longer Available; |
7072374 |
— | ||
|
38
|
38
2681287
Cover,seat,
ATV; |
2681287 |
— | ||
| replacement | |||||
|
38
|
38
2681241
Cover,seat,
ATV; |
2681241 |
— | ||
|
39
|
39
5430803
Foam bun, seat
No Longer Available; |
5430803 |
— | ||
|
40
|
40
5810310
Tape, foil
|
5810310 |
— | ||
|
41
|
41
5430773
Base, seat
|
5430773 |
— | ||
| replacement | |||||
|
41
|
41
2681240
Seat asm,
|
2681240 |
— | ||
|
42
|
42
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
|
43
|
43
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
44
|
44
1011558
Latch,seat
|
1011558 |
— | ||
|
45
|
45
7041158 Spring, latch |
7041158 |
US $18.45 |
||
|
46
|
46
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
47
|
47
5810349
Tape, foil
|
5810349 |
— | ||
