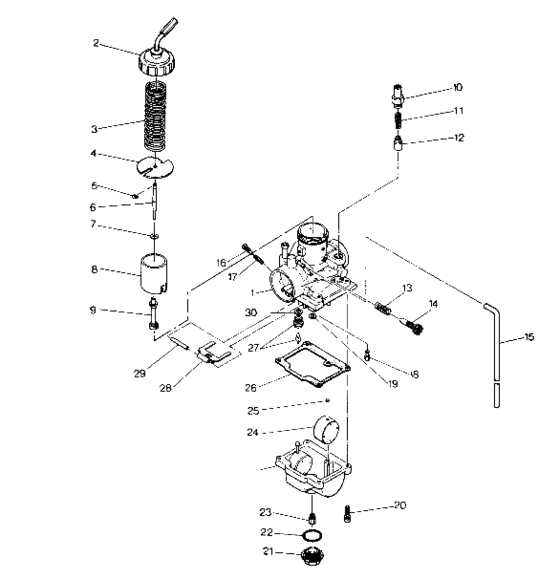

Carburetor assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3130394
Carb. asm.
Cannot Purchase as Assembly; |
3130394 |
— | ||
|
2
|
2
3130390
Cap, carb.
|
3130390 |
— | ||
|
3
|
3
3130318 Spring, throttle |
3130318 |
US $15.26 |
||
|
4
|
4
3130023
Bolt,banjo
|
3130023 |
— | ||
| replacement | |||||
|
4
|
4
3130210
Bolt, banjo
|
3130210 |
— | ||
|
5
|
5
3130003
E-ring
10; |
3130003 |
— | ||
| replacement | |||||
|
5
|
5
3130508 E-ring(10)10; |
3130508 |
US $3.75 |
||
|
6
|
6
3130391
Jet needle,6dh5-3
|
3130391 |
— | ||
|
7
|
7
3130355 Washer |
3130355 |
US $4.73 |
||
|
8
|
8
3130392
Valve,throttle
2.0; |
3130392 |
— | ||
|
9
|
9
3130160 Jet needle |
3130160 |
US $32.52 |
||
|
10
|
10
3130199 Holder,guide |
3130199 |
US $19.30 |
||
|
11
|
11
3080821
Spring plunger
|
3080821 |
— | ||
| replacement | |||||
|
11
|
11
3130006
Spring,plunger
|
3130006 |
— | ||
|
12
|
12
3130328 Asm,,plunger |
3130328 |
US $27.39 |
||
|
13
|
13
3130010 Spring |
3130010 |
US $7.09 |
||
|
14
|
14
3130324
Screw, throttle stop
|
3130324 |
— | ||
|
15
|
15
2200190
Kit-tank vent
|
2200190 |
— | ||
|
16
|
16
3130011 Screw,air |
3130011 |
US $16.24 |
||
|
17
|
17
3130012 Spring,air adjust |
3130012 |
US $7.09 |
||
|
18
|
18
3130067 Jet,pilot,#40(10)10; |
3130067 |
US $7.09 |
||
|
19
|
19
3130393
Ring, main jet
|
3130393 |
— | ||
|
20
|
20
3080380
Screw & washer
10; |
3080380 |
— | ||
| replacement | |||||
|
20
|
20
3130025 Asm,,screw & washer(10)10; |
3130025 |
US $1.89 |
||
|
21
|
21
3130238
Screw, guide
|
3130238 |
— | ||
| replacement | |||||
|
21
|
21
3130432 Screw, guide |
3130432 |
US $21.67 |
||
|
22
|
22
3130239 O ring |
3130239 |
US $12.20 |
||
|
23
|
23
3130123 Jet,main,hx,hd#200(10)10; |
3130123 |
US $6.11 |
||
|
24
|
24
3130032
Float asm.
|
3130032 |
— | ||
| replacement | |||||
|
24
|
24
3130430 Float asm, |
3130430 |
US $35.44 |
||
|
25
|
25
3130237 Cap(10)10; |
3130237 |
US $1.89 |
||
|
26
|
26
3130020 Gasket,float chamber |
3130020 |
US $17.24 |
||
|
27
|
27
3130360 Valve,needle (screw in) |
3130360 |
US $55.13 |
||
|
28
|
28
3130018 Arm,float |
3130018 |
US $18.32 |
||
|
29
|
29
3130361 Pin, float |
3130361 |
US $8.17 |
||
|
30
|
30
3080524
Packing
10; |
3080524 |
— | ||
| replacement | |||||
|
30
|
30
3130017 Packing, needle valve(10)10; |
3130017 |
US $5.78 |
||
