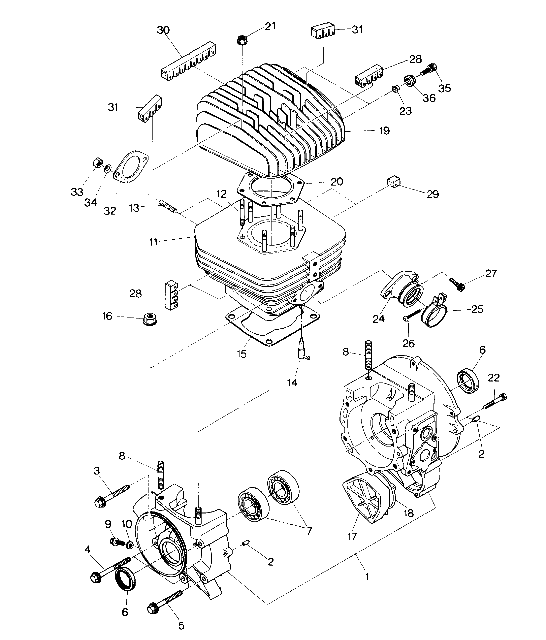

Crankcase and cylinder assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083836
Crankcase asm.
Incl. 2-10; |
3083836 |
— | ||
| replacement | |||||
|
1
|
1
3084579 Crankcase asm,Incl. 2-10; |
3084579 |
US $745.97 |
||
|
2
|
2
3080103
Pin, dowel
|
3080103 |
— | ||
| replacement | |||||
|
2
|
2
3086838 Pin,dowel |
3086838 |
US $4.73 |
||
|
3
|
3
3082096 Bolt and washer assy, |
3082096 |
US $1.77 |
||
|
4
|
4
3083615
Bolt&washer assy,
|
3083615 |
— | ||
|
5
|
5
3080739 Asm,, bolt and washer |
3080739 |
US $5.22 |
||
|
6
|
6
3082162 Seal,oil |
3082162 |
US $26.60 |
||
|
7
|
7
3080004
Bearing,ball
|
3080004 |
— | ||
| replacement | |||||
|
7
|
7
3083805 Bearing,ball * |
3083805 |
US $48.62 |
||
|
8
|
8
3080746
Stud
|
3080746 |
— | ||
| replacement | |||||
|
8
|
8
3085713 Stud |
3085713 |
US $7.09 |
||
|
9
|
9
3083767 Plug,drain |
3083767 |
US $5.92 |
||
|
10
|
10
3082758
Gasket, alum
10; |
3082758 |
— | ||
| replacement | |||||
|
10
|
10
7555998 Washer,flat(10) *10; |
7555998 |
US $0.79 |
||
|
11
|
11
3083833
Cylinder
Incl. 12-14; |
3083833 |
— | ||
| replacement | |||||
|
11
|
11
3083897
Cylinder
Incl. 12-14; |
3083897 |
— | ||
|
12
|
12
3080283 Stud |
3080283 |
US $8.17 |
||
|
13
|
13
3080016 Stud (10)10; |
3080016 |
US $7.51 |
||
|
14
|
14
3083337
Valve, check
|
3083337 |
— | ||
| replacement | |||||
|
14
|
14
3086785 Asm,,valve,check |
3086785 |
US $51.21 |
||
|
15
|
15
3083733
Gasket,cylinder
|
3083733 |
— | ||
|
16
|
16
3082911 Nut-flange(10)10; |
3082911 |
US $0.79 |
||
|
17
|
17
3083834
Cover, blind
|
3083834 |
— | ||
|
18
|
18
3083835
Gasket
|
3083835 |
— | ||
|
19
|
19
3083807
Head,cylinder
|
3083807 |
— | ||
|
20
|
20
3083768
Gasket, head
|
3083768 |
— | ||
|
21
|
21
3082910 Nut-flange(10)10; |
3082910 |
US $0.79 |
||
|
22
|
22
3082038 Bolt&washer asm, |
3082038 |
US $1.49 |
||
|
23
|
23
3083732
Collar
|
3083732 |
— | ||
|
24
|
24
3082537
Mount, carburetor
|
3082537 |
— | ||
| replacement | |||||
|
24
|
24
3085044
Adapter,carb,
|
3085044 |
— | ||
|
25
|
25
3083166
Asm-adapter band
Incl. 26; |
3083166 |
— | ||
|
26
|
26
3081497 Screw,pan head (10)10; |
3081497 |
US $0.79 |
||
|
27
|
27
3081330 Bolt, socket head |
3081330 |
US $3.26 |
||
|
28
|
28
3083621
Fin damper #1
|
3083621 |
— | ||
| replacement | |||||
|
28
|
28
3083929 Fin damper #1 |
3083929 |
US $19.20 |
||
|
29
|
29
3083622
Fin damper #2
|
3083622 |
— | ||
| replacement | |||||
|
29
|
29
3083930 Fin damper #2 |
3083930 |
US $22.45 |
||
|
30
|
30
3083623
Fin damper #3
No Longer Available; |
3083623 |
— | ||
|
31
|
31
3083624
Fin damper #4
No Longer Available; |
3083624 |
— | ||
|
32
|
32
3083770
Gasket, exhaust
|
3083770 |
— | ||
|
33
|
33
3080285
Nut
10; |
3080285 |
— | ||
|
34
|
34
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
35
|
35
3083730 Asm,,bolt and washer |
3083730 |
US $2.98 |
||
|
36
|
36
3083731 Mounting,rubber |
3083731 |
US $6.11 |
||
