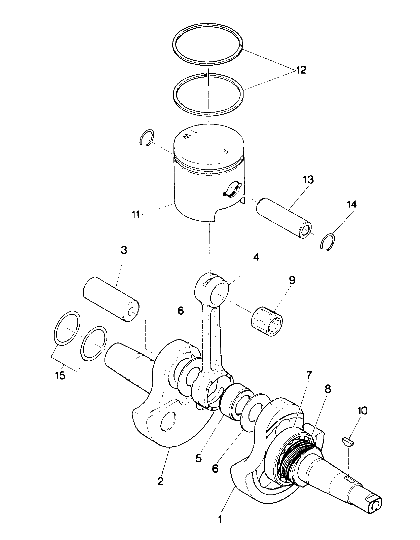

Crankshaft and piston assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083801
Crankshaft,#1
No Longer Available; |
3083801 |
— | ||
|
2
|
2
3083802
Crankshaft,#2
|
3083802 |
— | ||
|
3
|
3
3082796 Crank pin pto |
3082796 |
US $26.41 |
||
|
4
|
4
3082790 Rod connecting * |
3082790 |
US $162.51 |
||
|
5
|
5
3083803 Bearing,lge,end |
3083803 |
US $28.58 |
||
|
6
|
6
3083804 Spacer |
3083804 |
US $17.24 |
||
|
7
|
7
3083805 Bearing,ball * |
3083805 |
US $48.62 |
||
|
8
|
8
3083414 Gear, crankshaft |
3083414 |
US $89.62 |
||
| replacement | |||||
|
8
|
8
3083745
Gear, crankshaft
|
3083745 |
— | ||
|
9
|
9
3083626 Bearing, small end * |
3083626 |
US $29.54 |
||
|
10
|
10
3081543 Key woodruff |
3081543 |
US $9.15 |
||
|
11
|
11
3083677
Piston, .010
|
3083677 |
— | ||
| replacement | |||||
|
11
|
11
3083943
Piston,,010"/,25mm o/s
|
3083943 |
— | ||
|
11
|
11
3083679
Piston, .020
|
3083679 |
— | ||
| replacement | |||||
|
11
|
11
3083944
Piston,,020"/,50mm o/s
|
3083944 |
— | ||
|
11
|
11
3083771
Piston
|
3083771 |
— | ||
| replacement | |||||
|
11
|
11
3083942 Piston,standard* |
3083942 |
US $160 |
||
|
12
|
12
3083546 Piston,ring,standard * |
3083546 |
US $35.44 |
||
|
12
|
12
3083678 Set,piston,ring,,010"/,25mm o/s |
3083678 |
US $40.01 |
||
|
12
|
12
3083680
Ring, .020
|
3083680 |
— | ||
| replacement | |||||
|
12
|
12
3083717 Piston,ring,,020"/,50mm o/s* |
3083717 |
US $34.25 |
||
|
13
|
13
3083512 Pin, piston |
3083512 |
US $20.28 |
||
|
14
|
14
3083628
Clip, piston pin
10; |
3083628 |
— | ||
| replacement | |||||
|
14
|
14
3083839 Clip,piston pin,(10)10; |
3083839 |
US $69.80 |
||
|
15
|
15
3083629 Spacer #1 |
3083629 |
US $5.64 |
||
|
15
|
15
3083630
Spacer #3
|
3083630 |
— | ||
