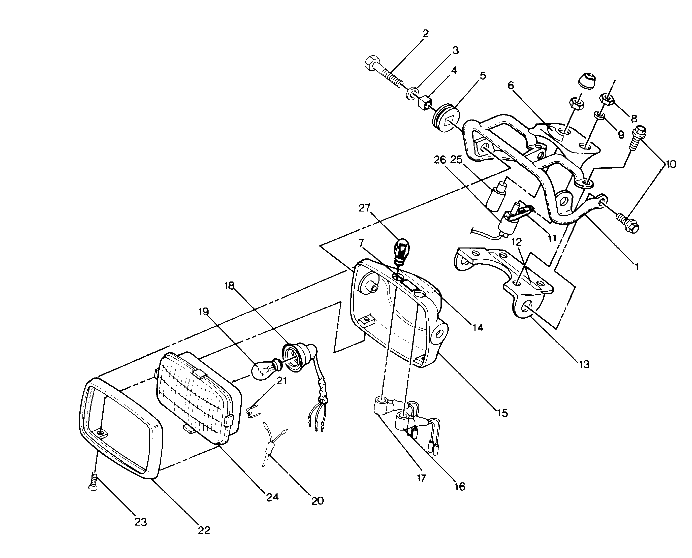

Headlight assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4032006
Stay,headlight
|
4032006 |
— | ||
|
2
|
2
4032024
Bolt, headlight
|
4032024 |
— | ||
|
3
|
3
4032025
Washer,plate,headlight
|
4032025 |
— | ||
|
4
|
4
4032022
Collar,body fitting
|
4032022 |
— | ||
|
5
|
5
4032023
Damper,headlight
|
4032023 |
— | ||
|
6
|
6
7072390
Decal,o`ride switch
|
7072390 |
— | ||
| replacement | |||||
|
6
|
6
7076274
Decal,o'ride sw,2wd
|
7076274 |
— | ||
|
7
|
7
7072391
Decal,rev.spd.limit
No Longer Available; |
7072391 |
— | ||
|
8
|
8
7080229 Nut |
7080229 |
US $16.24 |
||
|
9
|
9
5430816
Insert, choke mt.
No Longer Available; |
5430816 |
— | ||
|
10
|
10
7512252
Screw
10; |
7512252 |
— | ||
|
11
|
11
2200188 Kit-choke control |
2200188 |
US $24.61 |
||
|
12
|
12
7072376
Decal,oil/park
No Longer Available; |
7072376 |
— | ||
|
13
|
13
5220484
Bracket,h/l mt.
|
5220484 |
— | ||
|
14
|
14
7072371
Decal,indic.lts.
No Longer Available; |
7072371 |
— | ||
|
15
|
15
4032012
Headlight asm,body
|
4032012 |
— | ||
|
16
|
16
4032027
Pilot light asm,on/off
|
4032027 |
— | ||
|
17
|
17
4032026
Pilot light asm,reverse
|
4032026 |
— | ||
|
18
|
18
4032011
Socket cord asm.
|
4032011 |
— | ||
|
19
|
19
4032007
Bulb, headlight
|
4032007 |
— | ||
|
20
|
20
2460248
Harness,hi-beam indic.
|
2460248 |
— | ||
|
21
|
21
4032010
Spring reflector
|
4032010 |
— | ||
|
22
|
22
4032009
Rim, headlight
|
4032009 |
— | ||
|
23
|
23
4032013
Screw, pan head
|
4032013 |
— | ||
|
24
|
24
4032008
Lens asm.,headlight
|
4032008 |
— | ||
|
25
|
25
4110065
Switch,ignition,modified
|
4110065 |
— | ||
|
26
|
26
7080296
Cable, choke
|
7080296 |
— | ||
| replacement | |||||
|
26
|
26
7080357
Cable, choke
|
7080357 |
— | ||
|
27
|
27
4030032
Bulb,indic, light
|
4030032 |
— | ||
