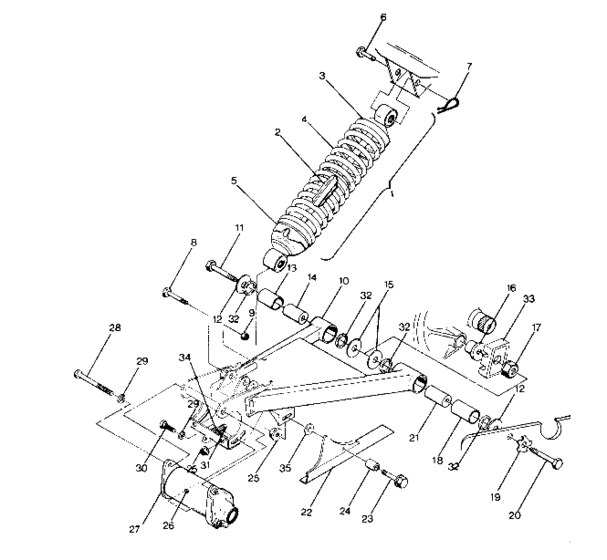

Swing arm weldment and rear shock assembly Diagram Polaris CYCLONE
- Model code
- W877828
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1580016
Shock asm.
No Longer Available; Incl. 2,3,4,5; |
1580016 |
— | ||
|
2
|
2
7041190
Shock
|
7041190 |
— | ||
|
3
|
3
5220631
Retainer, upper
|
5220631 |
— | ||
|
4
|
4
7041183
Spring
|
7041183 |
— | ||
|
5
|
5
5610101
Retainer,bottom
|
5610101 |
— | ||
|
6
|
6
7662014
Pin, clevis
10; |
7662014 |
— | ||
|
7
|
7
7661208
Hair pin cotter,
No Longer Available; 10; |
7661208 |
— | ||
|
8
|
8
7512410
Bolt
10; |
7512410 |
— | ||
| replacement | |||||
|
8
|
8
7515540 Bolt10; |
7515540 |
US $3.26 |
||
|
9
|
9
7542439 Nut,nylok(10)10; |
7542439 |
US $1.96 |
||
|
10
|
10
1580018
Arm, swing
|
1580018 |
— | ||
|
11
|
11
7512664
Bolt, special
|
7512664 |
— | ||
|
12
|
12
7555752 Bushing, mach.10; |
7555752 |
US $1.89 |
||
|
13
|
13
3576507 Bearing |
3576507 |
US $15.35 |
||
|
14
|
14
5010232
Bushing,lh swing arm
|
5010232 |
— | ||
|
15
|
15
7555749 Washer(10)10; |
7555749 |
US $1.89 |
||
|
16
|
16
5630267
Bushing,swing arm mt.
|
5630267 |
— | ||
|
17
|
17
7542717
Nut, lock
10; |
7542717 |
— | ||
|
18
|
18
3576508
Bearing
|
3576508 |
— | ||
|
19
|
19
5220611
Plate,bolt lock
|
5220611 |
— | ||
|
20
|
20
7512665
Bolt, special
|
7512665 |
— | ||
|
21
|
21
5010233
Bushing,rh swing arm
|
5010233 |
— | ||
|
22
|
22
5430776 Guard, chain* |
5430776 |
US $35.67 |
||
|
23
|
23
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
24
|
24
5332828 Bushing |
5332828 |
US $7.18 |
||
|
25
|
25
7542321 Nut,flange(10)10; |
7542321 |
US $1.89 |
||
|
26
|
26
7080306 Fitting,lube,w/ball ck,(10)10; |
7080306 |
US $91.90 |
||
|
27
|
27
1011556
Housing,axle, weld
|
1011556 |
— | ||
| replacement | |||||
|
27
|
27
1011657-067
New Genuine Part
|
1011657-067 |
— | ||
|
28
|
28
7512670
Bolt
|
7512670 |
— | ||
|
29
|
29
7553201 Washer,split lock10; |
7553201 |
US $2.45 |
||
|
30
|
30
7512669
Bolt
10; |
7512669 |
— | ||
|
31
|
31
7080293
Bolt, adjuster
|
7080293 |
— | ||
|
32
|
32
3610016 Seal,oil |
3610016 |
US $25.08 |
||
|
33
|
33
5430934
Guide,chain,inner
|
5430934 |
— | ||
|
34
|
34
7542301 Nut hex10; |
7542301 |
US $2.45 |
||
|
35
|
35
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
