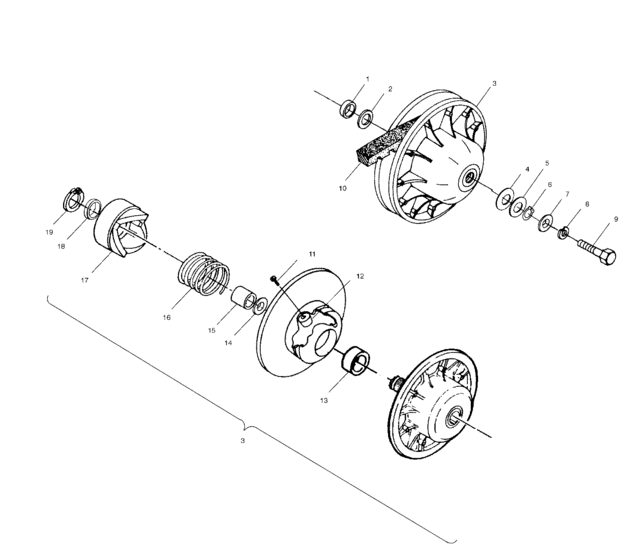

Driven clutch (A10CH46CA) Diagram Polaris DIESEL
- Model code
- A10CH46CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5010409 Spacer,driven,atv |
5010409 |
US $19.29 |
||
|
2
|
2
7556120 Bushing-7/8 x 3/8 x 16 ga-y (10 |
7556120 |
US $1.49 |
||
|
3
|
3
1322190 Clutch,drvn,brkgIncl. 11-15,18,19; |
1322190 |
US $640.10 |
||
|
4
|
4
7556203 Washer-1,39x2,50x,030,ptfe |
7556203 |
US $15.26 |
||
|
5
|
5
7556010 Bushing |
7556010 |
US $5.64 |
||
|
6
|
6
7710461 Ring,retain,hd, |
7710461 |
US $8.66 |
||
|
7
|
7
5220646 Washer, domed10; |
5220646 |
US $6.56 |
||
|
8
|
8
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
9
|
9
7515327 Bolt10; |
7515327 |
US $3.75 |
||
|
10
|
10
3211069 Belt,drive,eng,brk,(5)5; |
3211069 |
US $108.80 |
||
|
11
|
11
7517323 Screw, special |
7517323 |
US $15.05 |
||
|
12
|
12
1321977 Roller-taper,(3) sp-21 |
1321977 |
US $118.14 |
||
|
13
|
13
3585710 Bearing |
3585710 |
US $24.61 |
||
|
14
|
14
5211115 Washer(10)10; |
5211115 |
US $1.89 |
||
|
15
|
15
3576511 Bushing,moveable,1 inch |
3576511 |
US $29.54 |
||
|
16
|
16
7041636 Spring,drvn,4-stk,wht/grn |
7041636 |
US $35.67 |
||
|
17
|
17
5131674 Ramp,sta,brake,mach |
5131674 |
US $95.38 |
||
|
18
|
18
5210752 Spacer,,020(10)10; |
5210752 |
US $0.49 |
||
|
19
|
19
7710448 Ring,retaining |
7710448 |
US $3.94 |
