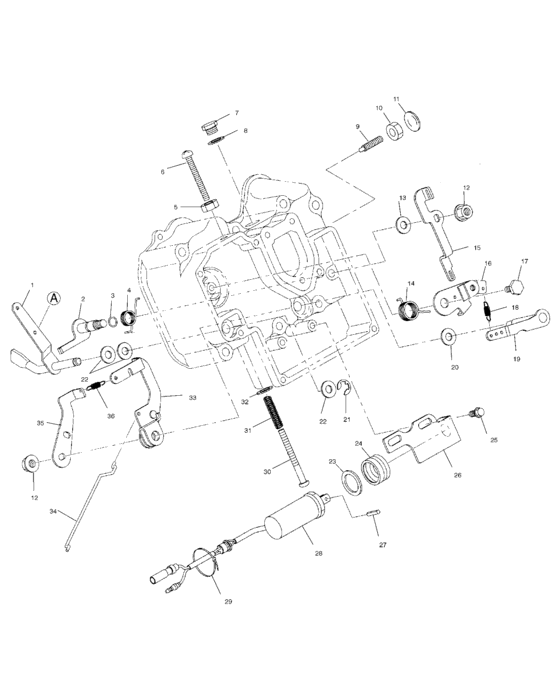

Governor (A10CH46CA) Diagram Polaris DIESEL
- Model code
- A10CH46CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3086032 Lever 4,governor |
3086032 |
US $27.39 |
||
|
2
|
2
3086166
Stopper
|
3086166 |
— | ||
|
3
|
3
3086054 O-ring |
3086054 |
US $3.06 |
||
|
4
|
4
3086046 Spring,return,stop |
3086046 |
US $6.11 |
||
|
5
|
5
3084375 Nut(10)10; |
3084375 |
US $0.79 |
||
|
6
|
6
3086056 Screw |
3086056 |
US $0.79 |
||
|
7
|
7
3084860 Plug |
3084860 |
US $5.11 |
||
|
8
|
8
3084861 Gasket |
3084861 |
US $7.91 |
||
|
9
|
9
3086164 Screw-adjusting |
3086164 |
US $7.68 |
||
|
10
|
10
3084912 Nut(10)10; |
3084912 |
US $1.49 |
||
|
11
|
11
3086038
Plug,blind
|
3086038 |
— | ||
|
12
|
12
3082910 Nut-flange(10)10; |
3082910 |
US $0.79 |
||
|
13
|
13
3080356 Washer(10)10; |
3080356 |
US $0.79 |
||
|
14
|
14
3086189
Spring-return
|
3086189 |
— | ||
|
15
|
15
3086045
Lever,stopper
|
3086045 |
— | ||
|
16
|
16
3086042 Control,speed |
3086042 |
US $24.43 |
||
|
17
|
17
3086052 Pivot,link |
3086052 |
US $4.73 |
||
|
18
|
18
3087095 Spring-govenor |
3087095 |
US $6.11 |
||
|
19
|
19
3086165 Lever 3-governor |
3086165 |
US $61.06 |
||
|
20
|
20
3086168 Spacer |
3086168 |
US $4.15 |
||
|
21
|
21
3086053 Clip(10)10; |
3086053 |
US $1.49 |
||
|
22
|
22
3080142 Washer(10)10; |
3080142 |
US $1.49 |
||
|
23
|
23
3086050
Spacer
|
3086050 |
— | ||
|
24
|
24
3086051 Boot,planger |
3086051 |
US $18.52 |
||
|
25
|
25
3083568
Bolt, flange
10; |
3083568 |
— | ||
| replacement | |||||
|
25
|
25
3087035
Bolt, flange
10; |
3087035 |
— | ||
|
26
|
26
3086047 Bracket,solenoid |
3086047 |
US $11.24 |
||
|
27
|
27
3086049 Spring,pin |
3086049 |
US $2.28 |
||
|
28
|
28
3086167
Solenoid asm,
|
3086167 |
— | ||
|
29
|
29
3084823 Band, wire |
3084823 |
US $13.20 |
||
|
30
|
30
3086055
Screw
|
3086055 |
— | ||
|
31
|
31
3086057 Spring,control |
3086057 |
US $3.26 |
||
|
32
|
32
3080078
Washer(10)
10; |
3080078 |
— | ||
|
33
|
33
3086163 Lever 1-governor |
3086163 |
US $51.21 |
||
|
34
|
34
3087096
Rod-govenor
|
3087096 |
— | ||
|
35
|
35
3086033 Lever 2,governor |
3086033 |
US $7.09 |
||
|
36
|
36
3086036 Spring,start |
3086036 |
US $2.45 |
||
