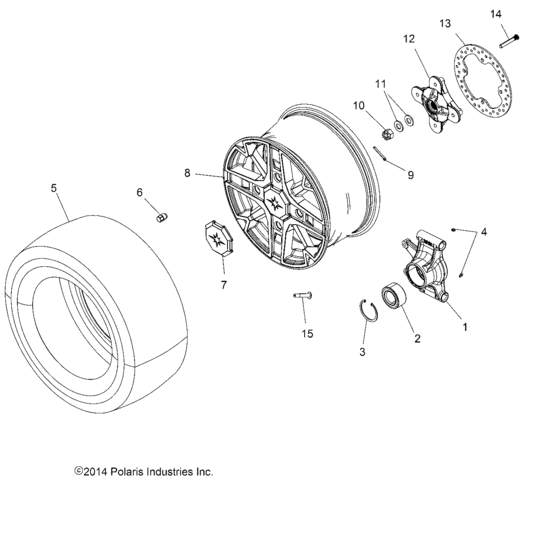

Wheels, Rear And Hub (A15SXE95FK (49ATVWHEELRR15F1EU)) Diagram Polaris FOREST 1000 EU
- Model code
- A15SXE95FK
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5136690 Carrier-bearing,mach,rh |
5136690 |
US $106.30 |
||
| replacement | |||||
|
1
|
1
5143608 CARRIER-BEARING,MACH,RH |
5143608 |
US $106.30 |
||
|
1
|
1
5136689 Carrier-bearing,mach,lh |
5136689 |
US $106.30 |
||
| replacement | |||||
|
1
|
1
5143607 Carrier-bearing,mach,lh |
5143607 |
US $106.30 |
||
|
2
|
2
3514699 Bearing-ball,sealed,44x72x33.1 |
3514699 |
US $49.23 |
||
|
3
|
3
7710440 Ring,retaining |
7710440 |
US $12.79 |
||
|
4
|
4
7080424 Fitting, lubrication |
7080424 |
US $4.59 |
||
|
5
|
5
5415389 TIRE-CARL PXT,AT26X11R14,EMARK |
5415389 |
US $192.01 |
||
|
6
|
6
7547361 Nut-wheel,m10x1,25,tapered |
7547361 |
US $5.25 |
||
|
7
|
7
1521999
Cap-rim
|
1521999 |
— | ||
| replacement | |||||
|
7
|
7
1521999-067 CAP-RIM,GLOSS BLK |
1521999-067 |
US $31.75 |
||
|
8
|
8
1522101-067 RIM-RR,CAST,14X7.5-72.2 OFFSETINCL. 16 |
1522101-067 |
US $299.15 |
||
|
9
|
9
7661404 Pin, cotter |
7661404 |
US $5.25 |
||
|
10
|
10
7547406 Nut-castle,m18x1,5x13 |
7547406 |
US $5.25 |
||
|
11
|
11
7555796 Washer, cone |
7555796 |
US $9.10 |
||
|
12
|
12
5136946 Hub-wheel,mach |
5136946 |
US $103.36 |
||
|
13
|
13
5250205 Disc-brake,246mm od,4,75 |
5250205 |
US $95.38 |
||
|
14
|
14
7518671 Stud-wheel,m10x1,25x58 |
7518671 |
US $3.94 |
||
|
15
|
15
1525017 Valve, rim |
1525017 |
US $6.56 |
||
