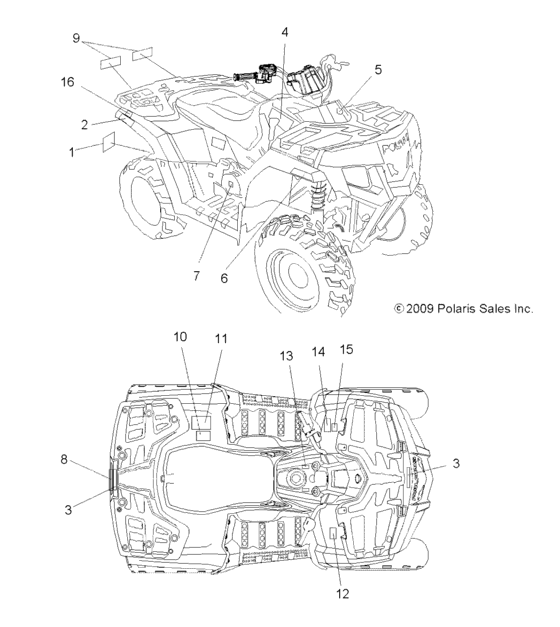

Body, decals (A11LB27AA) Diagram Polaris HAWKEYE 300 2X4
- Model code
- A11LB27AA
- Year
- 2011
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7173739
Decal-hitch
|
7173739 |
— | ||
|
2
|
2
7174559
Decal-reflector,red,lh
|
7174559 |
— | ||
|
2
|
2
7174560
Decal-reflector,red,rh
|
7174560 |
— | ||
|
3
|
3
7173740
Decal, warning fr/rr rack
|
7173740 |
— | ||
|
4
|
4
7174380
Decal-"hawkeye",tank side,lh
|
7174380 |
— | ||
|
4
|
4
7174381
Decal-"hawkeye",tank side,rh
|
7174381 |
— | ||
|
5
|
5
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
6
|
6
7175496 Decal-reflector,amber,rh |
7175496 |
US $15.26 |
||
|
6
|
6
7175495 Decal-reflector,amber,lh |
7175495 |
US $15.26 |
||
|
7
|
7
7172562
Decal-drain recoil
|
7172562 |
— | ||
|
8
|
8
7173696
Decal-"polaris"
|
7173696 |
— | ||
|
9
|
9
7174420
Decal-reflector,rear,red,rh
|
7174420 |
— | ||
|
9
|
9
7174419
Decal-reflector,rear,red,lh
|
7174419 |
— | ||
|
10
|
10
7175378
Decal, no passenger warning
|
7175378 |
— | ||
|
11
|
11
7175442
Decal, warning, tire/load
|
7175442 |
— | ||
|
12
|
12
7175511
Decal, warning, disc
|
7175511 |
— | ||
|
13
|
13
7079906 Decal-override switch,2wd,wht |
7079906 |
US $2.28 |
||
|
14
|
14
7175376
Decal, warning, general, 1-up
|
7175376 |
— | ||
|
15
|
15
7175374
Decal, age warning, 16
|
7175374 |
— | ||
|
16
|
16
7175618 Decal-rr,flag |
7175618 |
US $3.26 |
