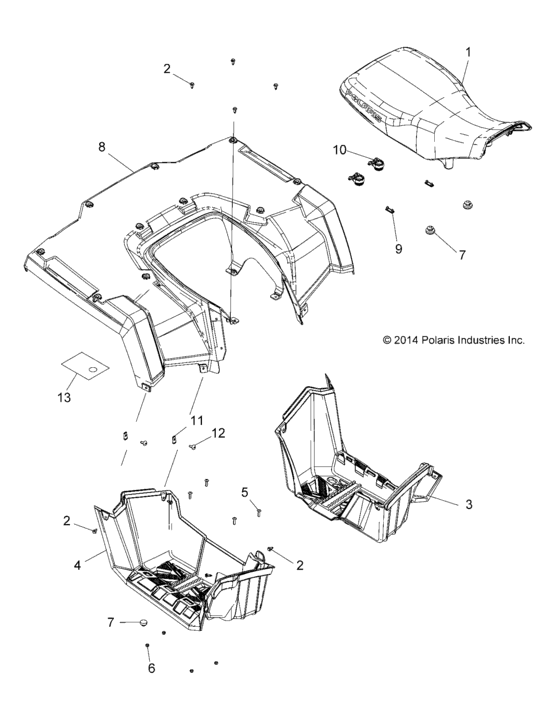

Body, Rear Cab, Seat And Footwells (A15SAA32EH (49ATVCABRR15SPETX)) Diagram Polaris HAWKEYE 325 2X4
- Model code
- A15SAA32EH
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2685519-070
Asm-seat,blk
INCL. 7,9 |
2685519-070 |
— | ||
|
1
|
1
2685520 ASM-COVER,SEAT,WHITE DECAL |
2685520 |
US $152.65 |
||
|
2
|
2
7661855 Rivet-tuflok,,315-,325x,787 (50 |
7661855 |
US $197 |
||
|
3
|
3
5450523-070 Footwell-lh,blk |
5450523-070 |
US $233.42 |
||
|
4
|
4
5450524-070 Footwell-rh,blk |
5450524-070 |
US $233.42 |
||
|
5
|
5
7517230 Screw(10) * |
7517230 |
US $13.10 |
||
|
6
|
6
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
7
|
7
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
8
|
8
2635180-620 ASM-CAB RR,SVC,BLUE FIREINCL. REFLECTORS |
2635180-620 |
US $490.40 |
||
|
9
|
9
5412982 Bumper-seat |
5412982 |
US $1.28 |
||
|
10
|
10
5413691 Grommet-seat latch |
5413691 |
US $1.98 |
||
|
11
|
11
7670145 Nut-1/4-20,u-type(1,56-,190) |
7670145 |
US $45.90 |
||
|
12
|
12
7518280 Scr-1/4-20x,75,tr/tx-m |
7518280 |
US $3.94 |
||
|
13
|
13
5814019 FOIL-FRAME,TOP |
5814019 |
US $22.84 |
