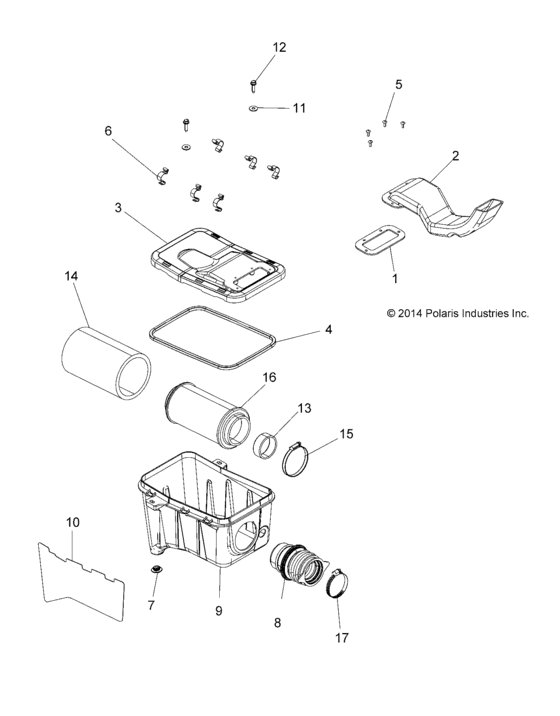

Engine, Air Intake System (A15SAA32EH (49ATVAIRBOX15SPETX)) Diagram Polaris HAWKEYE 325 2X4
- Model code
- A15SAA32EH
- Year
- 2015
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5411422 Gasket,intake |
5411422 |
US $8.17 |
||
|
2
|
2
5450386 Duct-air inlet |
5450386 |
US $45.17 |
||
|
3
|
3
5450388 COVER-AIR BOX |
5450388 |
US $31.52 |
||
|
4
|
4
5813949 Seal-airbox cover |
5813949 |
US $16.75 |
||
|
5
|
5
7517317 Screw(10) |
7517317 |
US $0.79 |
||
|
6
|
6
5242044 Clip |
5242044 |
US $7.68 |
||
|
7
|
7
5412981 Plug-compartment |
5412981 |
US $3.94 |
||
|
8
|
8
5415019 BOOT-INTAKE |
5415019 |
US $14.07 |
||
|
9
|
9
5450387 Box-air intake,spmn |
5450387 |
US $117.20 |
||
|
10
|
10
5813982 FOIL-AIRBOX |
5813982 |
US $14.28 |
||
|
11
|
11
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
12
|
12
7515179 Screw |
7515179 |
US $2.98 |
||
|
13
|
13
5433847 Sleeve-carb,inner |
5433847 |
US $13.20 |
||
|
14
|
14
5811633 Filter,preclean,sleeve |
5811633 |
US $14.77 |
||
|
15
|
15
7080707 Clamp,band,narrow (10) |
7080707 |
US $52.50 |
||
|
16
|
16
7080595
Filter,air
|
7080595 |
— | ||
| replacement | |||||
|
16
|
16
7082101
FILTER-AIR INTAKE
|
7082101 |
— | ||
|
17
|
17
7080413 Clamp,band,narrow (10) |
7080413 |
US $3.75 |
||
