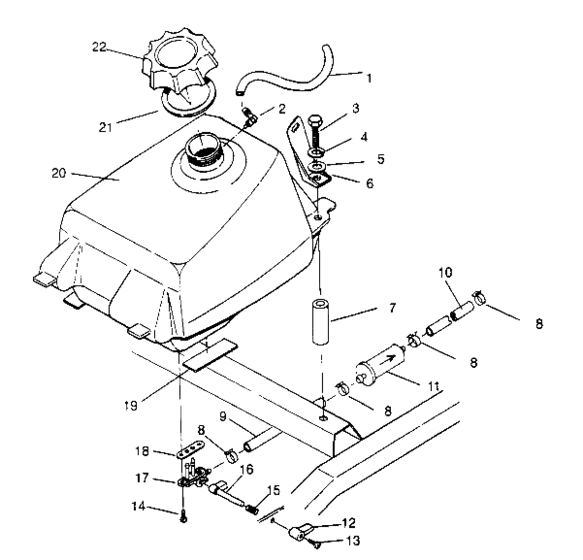

Fuel tank assembly (Magnum 2x4 W957544) Diagram Polaris MAGNUM 2X4
- Model code
- W957544
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
2
|
2
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
3
|
3
7512320
Bolt
10; |
7512320 |
— | ||
|
4
|
4
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
5
|
5
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
6
|
6
5222154-067
Bracket, fuel cover mount, rear, lh
|
5222154-067 |
— | ||
|
6
|
6
5222155-067
Bracket, fuel cover mount, rear, rh
|
5222155-067 |
— | ||
|
7
|
7
5333206
Spacer,fueltank
|
5333206 |
— | ||
| replacement | |||||
|
7
|
7
5332457 Spacer |
5332457 |
US $12.11 |
||
|
8
|
8
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
9
|
9
5410922
Fuelline,1/4",formed
|
5410922 |
— | ||
| replacement | |||||
|
9
|
9
5411296 Line,fuel,3/16" |
5411296 |
US $19.30 |
||
|
10
|
10
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
11
|
11
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
12
|
12
5431021 Lever, fuel |
5431021 |
US $5.25 |
||
|
13
|
13
7511840 Screw(10)10; |
7511840 |
US $0.79 |
||
|
14
|
14
7515136 Screw(10) *10; |
7515136 |
US $1.89 |
||
|
15
|
15
7041209 Spring,lever,compress, |
7041209 |
US $9.26 |
||
|
16
|
16
5431391 Ext,,fuel lever |
5431391 |
US $9.19 |
||
|
17
|
17
7051014
Valve, fuel
|
7051014 |
— | ||
| replacement | |||||
|
17
|
17
7052190 Valve,fuel,magnum |
7052190 |
US $40.58 |
||
|
18
|
18
5810859 Gasket, fuel valve |
5810859 |
US $3.75 |
||
|
19
|
19
8360026
Pad,bulk fuel
|
8360026 |
— | ||
|
20
|
20
5431674
Tank, fuel
|
5431674 |
— | ||
| replacement | |||||
|
20
|
20
5432879
Tank, fuel
|
5432879 |
— | ||
|
21
|
21
5810144 Gasket-gas cap(10) |
5810144 |
US $2.66 |
||
|
22
|
22
5430725 Cap, gas, (black)*BLACK; |
5430725 |
US $24.08 |
||
