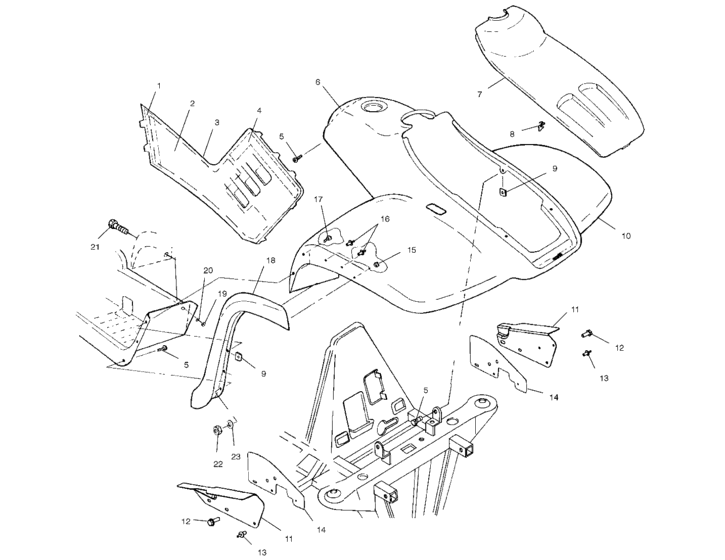

Front cab (A02CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 325 4X4 HDS
- Model code
- A02CD32FB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811491 Foil-rh |
5811491 |
US $4.34 |
||
|
2
|
2
5810996 Foil,foam |
5810996 |
US $56.14 |
||
|
3
|
3
2632284-341 Panel/foam asm,lh,sonic blue **AC; |
2632284-341 |
US $142.80 |
||
|
3
|
3
2632101-341 Panel/foil,asm,mod,rh,s,blueAC; |
2632101-341 |
US $112.28 |
||
|
3
|
3
2632284-317
Panel/foam,lh,gun metal
AA; |
2632284-317 |
— | ||
|
3
|
3
2632321-283 Panel/foam,lh,mo camoAB; |
2632321-283 |
US $223.13 |
||
|
3
|
3
2632084-317 Asm-panel/foam,lh,gun mtlFB; |
2632084-317 |
US $112.28 |
||
|
3
|
3
2632101-317
Panel/foil,mod,rh,gun mlt
AA;FB; |
2632101-317 |
— | ||
|
3
|
3
2632393-283
Panel asm/foil,mod,rh,m,o,camo
AB; |
2632393-283 |
— | ||
|
4
|
4
5811797 Foam-lh |
5811797 |
US $9.15 |
||
|
4
|
4
5811798
Foam,panel,side,rh
|
5811798 |
— | ||
|
5
|
5
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
6
|
6
5811801 Foam,front |
5811801 |
US $5.64 |
||
|
7
|
7
5432088-317
Cover-front,gunmetal
AA;FB; |
5432088-317 |
— | ||
|
7
|
7
5433290-283A Cover-front basic,m,o, camoAB; |
5433290-283A |
US $244.23 |
||
|
7
|
7
5432088-288 Cover-front,blazing redAC; |
5432088-288 |
US $122.12 |
||
|
8
|
8
7670085 Clip,spring(10) |
7670085 |
US $1.77 |
||
|
9
|
9
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
10
|
10
2632301-317
Cab,foam/front,svc,gunmetl
Incl. Warning Decals;AA;FB; |
2632301-317 |
— | ||
|
10
|
10
2632409-283
Cab,front,asm,svc,b u camo
Incl. Warning Decals;AB; |
2632409-283 |
— | ||
|
10
|
10
2632301-288
Asm-cab,foam/front,svc,b,red
Incl. Warning Decals;AC; |
2632301-288 |
— | ||
|
11
|
11
5245394-067 Shield-splash,lh,blk |
5245394-067 |
US $19.30 |
||
|
11
|
11
5245533-067 Shield-splash,rh,blk |
5245533-067 |
US $19.30 |
||
|
12
|
12
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
13
|
13
7621509 Rivet,plasti-lock(50) * |
7621509 |
US $197 |
||
|
14
|
14
5811917 Shield-deflector |
5811917 |
US $9.15 |
||
|
15
|
15
7670135 Nut-speed,3/16AA;AB;AC; |
7670135 |
US $2.45 |
||
|
16
|
16
7661645 Rivet(50) * |
7661645 |
US $1.89 |
||
|
17
|
17
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
18
|
18
5431798-070 Guard-mudflap,front,black,lhAA;AB;AC; |
5431798-070 |
US $56.14 |
||
|
18
|
18
5431799-070 Guard-mudflap,front,black,rhAA;AB;AC; |
5431799-070 |
US $56.14 |
||
|
19
|
19
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
20
|
20
7555792 Washer |
7555792 |
US $2.45 |
||
|
21
|
21
7512085
Screw
|
7512085 |
— | ||
| replacement | |||||
|
21
|
21
7511989
Screw
|
7511989 |
— | ||
|
22
|
22
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
23
|
23
7555931
Washer
|
7555931 |
— | ||
| replacement | |||||
|
23
|
23
7558221 Washer(10) |
7558221 |
US $0.79 |
||
