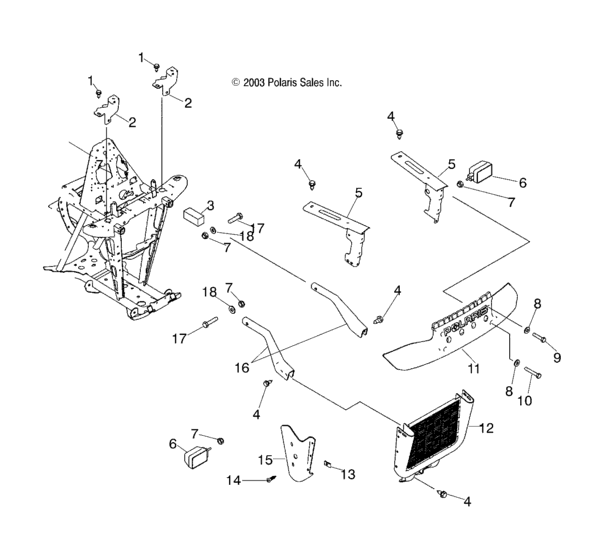

Front rack and bumper mounting (A04CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 330 4X4
- Model code
- A04CD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
2
|
2
1013744-067 Weld-support rack,front,lh,blk |
1013744-067 |
US $138.64 |
||
|
2
|
2
1013746-067 Weld-support,rack,front,rh,blk |
1013746-067 |
US $114.99 |
||
|
3
|
3
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
4
|
4
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
5
|
5
1014099-067 Weld-rack mount,lh,blk |
1014099-067 |
US $96.51 |
||
|
5
|
5
1014101-067 Weld-rack mount rh,blk |
1014101-067 |
US $198.68 |
||
|
6
|
6
2431011 Asm-headlight,30/30w,side mount |
2431011 |
US $128.21 |
||
|
6
|
6
2431012 Asm-headlight,30/30w,side mount |
2431012 |
US $128.21 |
||
|
6
|
6
4030061 Bulb,h/l,30/30 w, |
4030061 |
US $38.38 |
||
|
7
|
7
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
8
|
8
7555954 WasherIf built before 10/01/03; |
7555954 |
US $2.45 |
||
|
9
|
9
7515391 Bolt(10) *If built before 10/01/03; |
7515391 |
US $1.89 |
||
|
9
|
9
7517977
Bolt-5/16-18x2,25 flg tap/r-y
If built after 10/01/03; |
7517977 |
— | ||
|
10
|
10
7515390
Bolt
If built before 10/01/03; |
7515390 |
— | ||
|
11
|
11
5432155-070 Bumper,blk |
5432155-070 |
US $152.65 |
||
|
12
|
12
1013772-067
Weld-brush guard,blk
|
1013772-067 |
— | ||
|
13
|
13
7670094 Nut |
7670094 |
US $3.75 |
||
|
14
|
14
7512097 Screw(10) |
7512097 |
US $1.49 |
||
|
15
|
15
5433923 Shield-radiator,side,lh |
5433923 |
US $28.58 |
||
|
15
|
15
5433924 Shield-radiator,side,rh |
5433924 |
US $28.58 |
||
|
16
|
16
5244729-067 Extension-frame,lh,blk |
5244729-067 |
US $140.81 |
||
|
16
|
16
5244730-067 Extension-frame,rh,blk |
5244730-067 |
US $140.81 |
||
|
17
|
17
7512329 Bolt |
7512329 |
US $4.59 |
||
|
18
|
18
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
