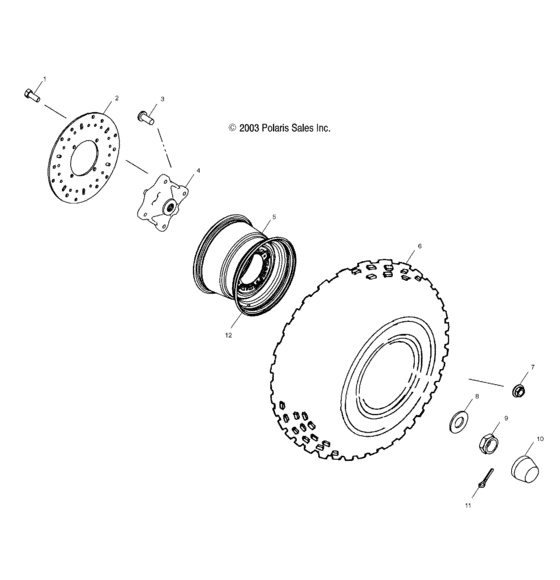

Front wheel (A04CD32AA/AB/AC/FB) Diagram Polaris MAGNUM 330 4X4
- Model code
- A04CD32AA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512325 Bolt |
7512325 |
US $5.25 |
||
|
2
|
2
5244314 Disc,brake,front |
5244314 |
US $88.60 |
||
|
3
|
3
7515513 Stud(10) * |
7515513 |
US $19.60 |
||
|
4
|
4
5133360
Hub-wheel,awd,mach
If built before 10/20/03; |
5133360 |
— | ||
|
4
|
4
5134310 Hub-wheel,awd,machIf built after 10/20/03; |
5134310 |
US $97.44 |
||
|
5
|
5
1520563-385
Rim, front, lh, silver
AA;AC;FB; If built before 1/12/04; |
1520563-385 |
— | ||
|
5
|
5
1520563-067
Rim, front, lh, black
AB; If built before 1/12/04; |
1520563-067 |
— | ||
|
5
|
5
1520269-486 Rim,front,slvrAA;AC;FB; If built after 1/12/04; |
1520269-486 |
US $107.36 |
||
|
5
|
5
1520269-067 Rim,front,12x6,blackAB; If built after 1/12/04; |
1520269-067 |
US $107.36 |
||
|
6
|
6
5411709
Titan__c40
24x8-12; |
5411709 |
— | ||
|
7
|
7
7547237 Nut-flange,two piece,3/8-24 |
7547237 |
US $39.40 |
||
|
8
|
8
7556004 Washer |
7556004 |
US $5.22 |
||
|
9
|
9
7542810 Nut, slotted |
7542810 |
US $3.94 |
||
|
10
|
10
5412489
Boot, clutch intake
|
5412489 |
— | ||
|
11
|
11
7661401 Pin,cotter(10) |
7661401 |
US $3.94 |
||
|
12
|
12
1525017 Valve, rim |
1525017 |
US $6.56 |
