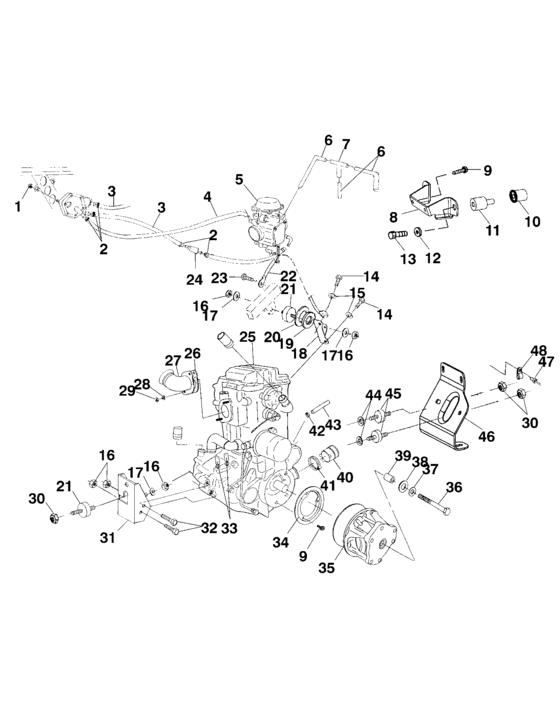

Engine mounting (A99CD50AA) Diagram Polaris MAGNUM 500
- Model code
- A99CD50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7546601
Nut, nylok(10)
10; |
7546601 |
— | ||
|
2
|
2
7080003 Clamp,hose(10)10; |
7080003 |
US $0.79 |
||
|
3
|
3
8450040-600 Line fuel,1/4 id(600 cm,)600 CM.; |
8450040-600 |
US $65.99 |
||
|
4
|
4
8450083-66
Line-fuel impulse,66cm
No Longer Available; |
8450083-66 |
— | ||
|
6
|
6
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
7
|
7
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
|
8
|
8
5240609-067
Brkt, carb,mt,
|
5240609-067 |
— | ||
|
10
|
10
7547069 Nutsert,hex10; |
7547069 |
US $3.26 |
||
|
11
|
11
3110079
Mount,carb,rubber
|
3110079 |
— | ||
| replacement | |||||
|
11
|
11
3021186 Mount,rubber,duro 55 |
3021186 |
US $9.91 |
||
|
12
|
12
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
13
|
13
7512102 Screw(10)10; |
7512102 |
US $1.89 |
||
|
14
|
14
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
15
|
15
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
16
|
16
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
17
|
17
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
18
|
18
5242936-067 Mount,engine,top,blk |
5242936-067 |
US $7.09 |
||
|
19
|
19
7555823 Washer10; |
7555823 |
US $6.56 |
||
|
20
|
20
5132007
Spacer-motor mnt top
|
5132007 |
— | ||
|
21
|
21
3110044
Mount, rubber, top
|
3110044 |
— | ||
| replacement | |||||
|
21
|
21
3024012 ISOLATOR-3/8-24M/M,60DURO |
3024012 |
US $39.38 |
||
|
22
|
22
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
23
|
23
7517386 Screw(10)10; |
7517386 |
US $19.60 |
||
|
24
|
24
2530009 Filter,small,in-line,(10)10; |
2530009 |
US $6.56 |
||
|
25
|
25
3085556
Engine, short block
S.B.;EH50PLE08;See Footnote; |
3085556 |
— | ||
|
27
|
27
1260889-029 Manifold,blk,Before 9-11-98; |
1260889-029 |
US $86.68 |
||
|
27
|
27
1260978-029
Manifold,blk
After 9-11-98; |
1260978-029 |
— | ||
|
28
|
28
3080530 Washer, spring lock10; |
3080530 |
US $1.89 |
||
|
29
|
29
3080285
Nut
10; |
3080285 |
— | ||
|
30
|
30
7542459 Nut, flanged(10)10; |
7542459 |
US $65.60 |
||
|
31
|
31
5242818-067 Mount,low,fr,engine,blk, |
5242818-067 |
US $63.33 |
||
|
32
|
32
7515417 Screw10; |
7515417 |
US $3.94 |
||
|
33
|
33
7080474 Clamp, hose (10)10; |
7080474 |
US $5.64 |
||
|
36
|
36
7512566 Bolt10; |
7512566 |
US $12.79 |
||
|
37
|
37
7575202 Washer lock10; |
7575202 |
US $6.56 |
||
|
38
|
38
5210748 Washer(10)10; |
5210748 |
US $5.25 |
||
|
39
|
39
5430261 Bushing |
5430261 |
US $9.10 |
||
|
40
|
40
5410421 Boot,clutch intake |
5410421 |
US $9.85 |
||
|
41
|
41
7080511 Clamp, narrow band10; |
7080511 |
US $1.75 |
||
|
42
|
42
7080694 Clamp,hose,spring |
7080694 |
US $3.94 |
||
|
44
|
44
7555815 Washer, flat10; |
7555815 |
US $3.26 |
||
|
45
|
45
3110046
Mount, rubber, front
|
3110046 |
— | ||
|
47
|
47
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
48
|
48
7080539 Clamp,nylon,cable10; |
7080539 |
US $2.45 |
||
