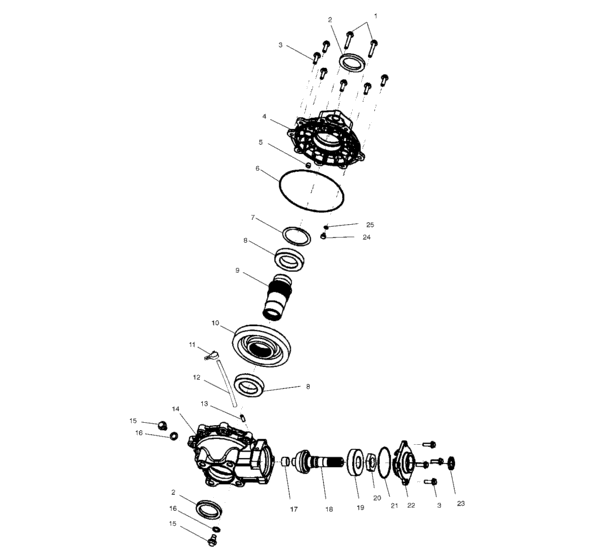

Rear housing (A99CD50AA) Diagram Polaris MAGNUM 500
- Model code
- A99CD50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233585
Screw
|
3233585 |
— | ||
|
2
|
2
3233256
Seal
|
3233256 |
— | ||
|
3
|
3
3233252 Screw |
3233252 |
US $8.87 |
||
|
4
|
4
3233584 Gearcase cover output |
3233584 |
US $326.04 |
||
|
5
|
5
3233529 Pipe,knock |
3233529 |
US $8.52 |
||
|
6
|
6
3233587 O-ring 166 |
3233587 |
US $20.28 |
||
|
7
|
7
3233581 Shim 3,1 x 2,5 |
3233581 |
US $26.13 |
||
|
8
|
8
3233268 Bearing, ball |
3233268 |
US $63.98 |
||
|
9
|
9
3233580
Shaft,rear axel
|
3233580 |
— | ||
|
10
|
10
3233579
Gear bevel 31t rear
|
3233579 |
— | ||
|
11
|
11
7670102 Clip10; |
7670102 |
US $5.25 |
||
|
12
|
12
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
13
|
13
3233524 Tube,vent |
3233524 |
US $6.11 |
||
|
14
|
14
3233586
Gearcase,rear
|
3233586 |
— | ||
|
15
|
15
3233325
Dipstick
PLUG; |
3233325 |
— | ||
| replacement | |||||
|
15
|
15
3233711 Plug,oil fillPLUG; |
3233711 |
US $20.69 |
||
|
16
|
16
3233324 Washer |
3233324 |
US $3.26 |
||
|
17
|
17
3233577 Bushing |
3233577 |
US $17.24 |
||
|
18
|
18
3233576
Shaft,pinion,10t bevel,rear
For Gearcase 1341254; |
3233576 |
— | ||
| replacement | |||||
|
18
|
18
3233707
Shaft-pinion,10t bevel,rear
For Gearcase 1341254; |
3233707 |
— | ||
|
18
|
18
3233707
Shaft-pinion,10t bevel,rear
For Gearcase 1341309; |
3233707 |
— | ||
|
19
|
19
3233575
Bearing,ball
|
3233575 |
— | ||
| replacement | |||||
|
19
|
19
3233714 Bearing-ball |
3233714 |
US $31.52 |
||
|
20
|
20
3233574
Nut
|
3233574 |
— | ||
|
21
|
21
3233588 O-ring 151 |
3233588 |
US $6.86 |
||
|
22
|
22
3233573
Gearcase,cover
|
3233573 |
— | ||
|
23
|
23
3233319 Seal |
3233319 |
US $18.73 |
||
|
24
|
24
3233582 Button,thrust |
3233582 |
US $2.66 |
||
|
25
|
25
3233583 Shim ,450 x ,265 |
3233583 |
US $9.12 |
||
