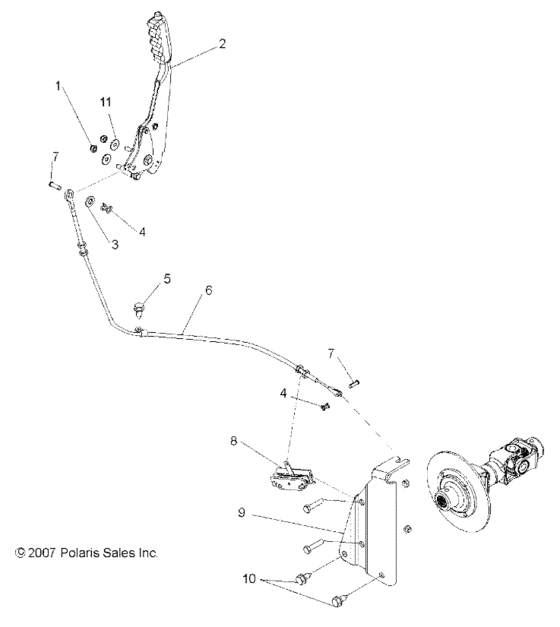

Brakes, park brake asm. (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547144 Nut,nylok m8x1,25(10) * |
7547144 |
US $0.79 |
||
|
2
|
2
1911260 Asm-lever,park brake |
1911260 |
US $243.72 |
||
|
3
|
3
7558302 Washer,wrought |
7558302 |
US $2.45 |
||
|
4
|
4
7661140
Pin-clip,14mm
|
7661140 |
— | ||
|
5
|
5
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
6
|
6
7081463 Cable-brake,parking |
7081463 |
US $101.45 |
||
|
7
|
7
7661830 Pin, clevis |
7661830 |
US $3.26 |
||
|
8
|
8
1910833
Asm., caliper, park brake
|
1910833 |
— | ||
|
8
|
8
2203254 Kit mount,ranger p/b |
2203254 |
US $51.21 |
||
|
8
|
8
2203255 Kit, p/b hardware |
2203255 |
US $101.45 |
||
|
8
|
8
2203147 Kit-brake pad f/m, p/b |
2203147 |
US $49.25 |
||
|
8
|
8
2203148 Kit-brake pad & shims, p/b |
2203148 |
US $68.93 |
||
|
9
|
9
5251556-067
Brkt-caliper,park brake,blk
|
5251556-067 |
— | ||
|
10
|
10
7512399 Screw |
7512399 |
US $3.94 |
||
|
11
|
11
7556459 Washer-m8 fw stl 2y din 9021b |
7556459 |
US $0.79 |
