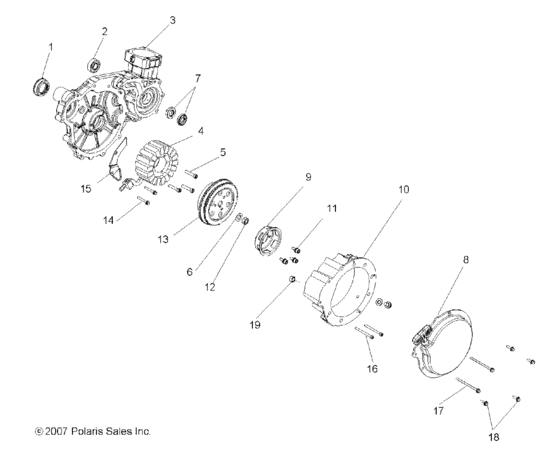

Engine, recoil cover (M08RH76MA) Diagram Polaris MVRS 800 4X4
- Model code
- M08RH76MA
- Year
- 2008
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5412881 Seal-flanged,29x44x10 w/helix |
5412881 |
US $40.15 |
||
|
2
|
2
3584404 Bearing,ball,15x35x11 |
3584404 |
US $28.35 |
||
|
3
|
3
7663002
Pin, dowel
|
7663002 |
— | ||
|
3
|
3
1203392
Asm-mag cover w/comp hsg,di
|
1203392 |
— | ||
|
3
|
3
3514378 Bushing-12,08x17x10 |
3514378 |
US $15.26 |
||
|
7
|
7
5413402
Seal-oil/coolant 15x30x7
|
5413402 |
— | ||
|
8
|
8
1202648-479 Asm-recoil,housing,atv coated |
1202648-479 |
US $213.71 |
||
|
9
|
9
3021474 Pulley-starting,recoil atv twn |
3021474 |
US $9.75 |
||
|
10
|
10
1203493
Asm-housing recoil lower,atv
|
1203493 |
— | ||
|
11
|
11
7516730 Asm,,screw and washer |
7516730 |
US $8.66 |
||
|
16
|
16
7517807 Scr-m6x1,0x70mm soc/cap-y/d |
7517807 |
US $2.98 |
||
|
17
|
17
7518756
Scr-m6x1x95 hx/fl
|
7518756 |
— | ||
|
18
|
18
7516822
Screw
|
7516822 |
— | ||
|
19
|
19
3514378 Bushing-12,08x17x10 |
3514378 |
US $15.26 |
