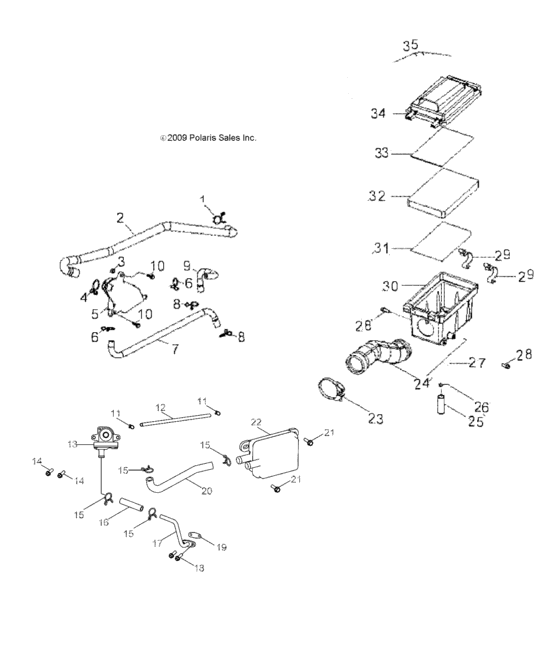

Engine, Air Intake System (A14KA05AD/AF (49ATVAIRBOX14OUT50)) Diagram Polaris OUTLAW 50
- Model code
- A14KA05AD/AF
- Year
- 2014
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0453932 Clip-airbox,predator 50 |
0453932 |
US $2.45 |
||
|
2
|
2
0453933 Tube-breather,ventilated |
0453933 |
US $24.43 |
||
|
3
|
3
0450150 Nut-flange,hex(10)* |
0450150 |
US $0.79 |
||
|
4
|
4
0453187 Clip-retaining |
0453187 |
US $2.45 |
||
|
5
|
5
0453184 Separator-oil |
0453184 |
US $78.56 |
||
|
6
|
6
0453934 Clip-airbox,predator 50 |
0453934 |
US $1.49 |
||
|
7
|
7
0453935 Tube-oil,airbox,pred 50 |
0453935 |
US $9.15 |
||
|
8
|
8
0453936 Clip-air box,predator 50 |
0453936 |
US $1.49 |
||
|
9
|
9
0454000 Tube-oil,airobx,pred 50 |
0454000 |
US $9.15 |
||
|
10
|
10
0454011 Bolt-hex washer |
0454011 |
US $1.49 |
||
|
11
|
11
0453944 Clamp |
0453944 |
US $1.49 |
||
|
12
|
12
0454927 HOSE |
0454927 |
US $3.26 |
||
|
13
|
13
0454398 Valve-intake,dual |
0454398 |
US $177.82 |
||
|
14
|
14
0453517 Bolt-frame |
0453517 |
US $1.49 |
||
|
15
|
15
0452795 Clip |
0452795 |
US $1.49 |
||
|
16
|
16
0454928 HOSE |
0454928 |
US $9.15 |
||
|
17
|
17
0454938 TUBE-INTAKE,DUAL |
0454938 |
US $17.24 |
||
|
18
|
18
0452413 Bolt-hex,flange |
0452413 |
US $1.61 |
||
|
19
|
19
0452808
Gasket-air injection
|
0452808 |
— | ||
|
20
|
20
0454941 HOSE-FORMED |
0454941 |
US $27.39 |
||
|
21
|
21
0454785 Bolt-w/loctite |
0454785 |
US $1.75 |
||
|
22
|
22
0454375 Asm-filter,fuel |
0454375 |
US $22.44 |
||
|
23
|
23
0452562 Clamp |
0452562 |
US $9.36 |
||
|
24
|
24
0453903
Boot, air box
|
0453903 |
— | ||
|
25
|
25
0453938 Hose-drain,airbox,pred 50 |
0453938 |
US $2.28 |
||
|
26
|
26
0453932 Clip-airbox,predator 50 |
0453932 |
US $2.45 |
||
|
27
|
27
0453943 Asm-airbox w/bootINCL. 24 |
0453943 |
US $34.67 |
||
|
28
|
28
0453939 Bolt |
0453939 |
US $1.49 |
||
|
29
|
29
0453940 Clip-airbox,pred 50 |
0453940 |
US $4.73 |
||
|
31
|
31
0453905 Screen-air cleaner,pred 50 |
0453905 |
US $10.15 |
||
|
32
|
32
0453906 Filter-air cleaner,pred 50 |
0453906 |
US $20.56 |
||
|
33
|
33
0453907 Gasket-air box,pred 50 |
0453907 |
US $4.94 |
||
|
34
|
34
0453908 Cover-air box,pred 50 |
0453908 |
US $23.24 |
