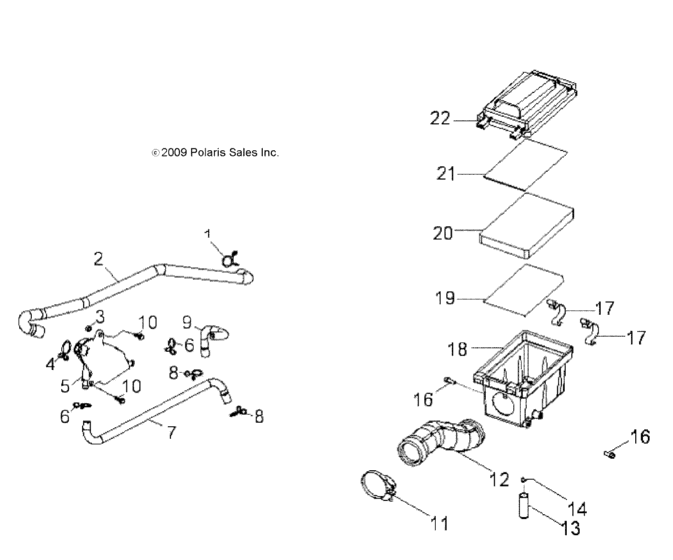

Engine, air intake system (A10KA05FA/FB/FD) Diagram Polaris OUTLAW 50 INTL
- Model code
- A10KA05FA/FB/FD
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0453932 Clip-airbox,predator 50 |
0453932 |
US $2.45 |
||
|
2
|
2
0453933 Tube-breather,ventilated |
0453933 |
US $24.43 |
||
|
3
|
3
0450150 Nut-flange,hex(10)* |
0450150 |
US $0.79 |
||
|
4
|
4
0453187 Clip-retaining |
0453187 |
US $2.45 |
||
|
5
|
5
0453184 Separator-oil |
0453184 |
US $78.56 |
||
|
6
|
6
0453934 Clip-airbox,predator 50 |
0453934 |
US $1.49 |
||
|
7
|
7
0453935 Tube-oil,airbox,pred 50 |
0453935 |
US $9.15 |
||
|
8
|
8
0453936 Clip-air box,predator 50 |
0453936 |
US $1.49 |
||
|
9
|
9
0454000 Tube-oil,airobx,pred 50 |
0454000 |
US $9.15 |
||
|
10
|
10
0454011 Bolt-hex washer |
0454011 |
US $1.49 |
||
|
11
|
11
0452562 Clamp |
0452562 |
US $9.36 |
||
|
12
|
12
0453903
Boot, air box
|
0453903 |
— | ||
|
13
|
13
0453938 Hose-drain,airbox,pred 50 |
0453938 |
US $2.28 |
||
|
14
|
14
0453932 Clip-airbox,predator 50 |
0453932 |
US $2.45 |
||
|
16
|
16
0453939 Bolt |
0453939 |
US $1.49 |
||
|
17
|
17
0453940 Clip-airbox,pred 50 |
0453940 |
US $4.73 |
||
|
18
|
18
0453904
Box, air
|
0453904 |
— | ||
|
19
|
19
0453905 Screen-air cleaner,pred 50 |
0453905 |
US $10.15 |
||
|
20
|
20
0453906 Filter-air cleaner,pred 50 |
0453906 |
US $20.56 |
||
|
21
|
21
0453907 Gasket-air box,pred 50 |
0453907 |
US $4.94 |
||
|
22
|
22
0453908 Cover-air box,pred 50 |
0453908 |
US $23.24 |
