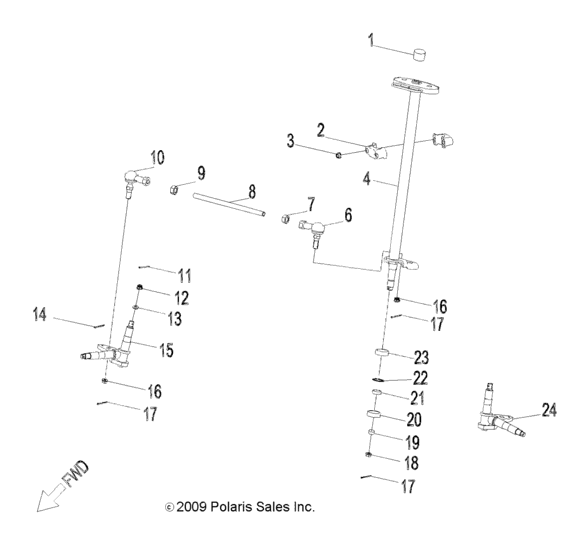

Steering, steering post and tie rod asm. (A10KA05FA/FB/FD) Diagram Polaris OUTLAW 50 INTL
- Model code
- A10KA05FA/FB/FD
- Year
- 2010
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450499 Sleeve,steering,shaft |
0450499 |
US $16.24 |
||
|
2
|
2
0450505 Holder,steering shaft * |
0450505 |
US $14.18 |
||
|
3
|
3
0450268 Nut-flange(10) |
0450268 |
US $0.79 |
||
|
4
|
4
0451797-067 Post-steering,blk |
0451797-067 |
US $98.07 |
||
|
6
|
6
0454746 Rod end, lh |
0454746 |
US $67.13 |
||
|
7
|
7
0454749 Nut-tie rod,youth,lh |
0454749 |
US $2.45 |
||
|
8
|
8
0454748 Tie rod |
0454748 |
US $21.21 |
||
|
9
|
9
0454750 Nut-tie rod,youth,rh |
0454750 |
US $2.45 |
||
|
10
|
10
0454747 Rod end, rh |
0454747 |
US $67.13 |
||
|
11
|
11
0450507 Pin-cotter(10) |
0450507 |
US $0.79 |
||
|
12
|
12
0450502 Nut-lock |
0450502 |
US $7.68 |
||
|
13
|
13
0453513 Washer-post,steering |
0453513 |
US $3.26 |
||
|
14
|
14
0450395 Pin-cotter (10) |
0450395 |
US $0.79 |
||
|
15
|
15
0450916 Knuckle,lh |
0450916 |
US $126.49 |
||
|
16
|
16
0450276 Nut-lock(10) |
0450276 |
US $1.89 |
||
|
17
|
17
0450719
Pin-cotter(10)
|
0450719 |
— | ||
|
18
|
18
0450878 Nut-lock,nylon |
0450878 |
US $8.66 |
||
|
19
|
19
0450390 Spacer,inner(10) |
0450390 |
US $5.25 |
||
|
20
|
20
0450389 Seal-oil * |
0450389 |
US $11.03 |
||
|
21
|
21
0450493 Bearing-ball |
0450493 |
US $37.42 |
||
|
22
|
22
0450161 Circlip-internal (10) |
0450161 |
US $5.90 |
||
|
23
|
23
0450491 Seal-oil(10) |
0450491 |
US $21.07 |
||
|
24
|
24
0450917 Knuckle,rh |
0450917 |
US $177.07 |
