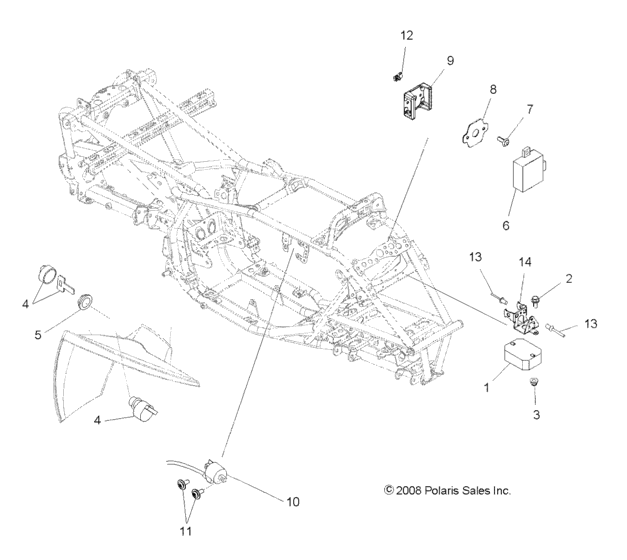

Electrical, regulator, cdi and coil (A09GP52AA) Diagram Polaris OUTLAW 525 IRS
- Model code
- A09GP52AA
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4010654
Rectifier, regulator
|
4010654 |
— | ||
|
2
|
2
7518533 Bolt-m6x1,0x20,hxhd,flg,blk |
7518533 |
US $1.96 |
||
|
3
|
3
7547339
Nut-m6x1,0,flg-nyloc-olive d
|
7547339 |
— | ||
|
4
|
4
4012163 Switch-ignition,mt slvIncl. 5, Key, Key Cover; |
4012163 |
US $93.56 |
||
|
5
|
5
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
6
|
6
4011668 Controller-ign,kok |
4011668 |
US $406.19 |
||
|
7
|
7
7519066 Scr-hxfltx-m6x1,0x15 8,8 zod |
7519066 |
US $1.77 |
||
|
8
|
8
5250906 Plate-cdi mount |
5250906 |
US $4.34 |
||
|
9
|
9
5413234 Mount-cdi |
5413234 |
US $17.24 |
||
|
10
|
10
4012392 Coil-ignition,kok,525 atv |
4012392 |
US $67.13 |
||
|
11
|
11
7518196 Scr-10-24x3/4 ph/tx/tri-sems y |
7518196 |
US $0.79 |
||
|
12
|
12
7081305
Clip-u speed nut
|
7081305 |
— | ||
|
13
|
13
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
14
|
14
5252711 Brkt-mount,reg/solenoid |
5252711 |
US $16.24 |
