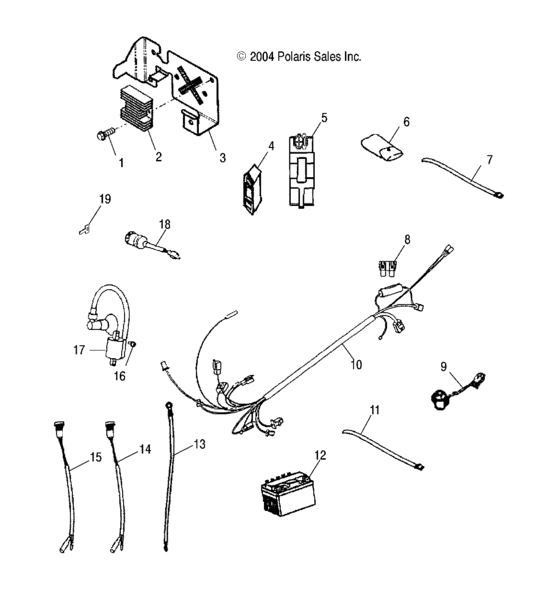

Electrical parts (A05PB20AA/AB/AC/AD) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
2
|
2
0453025
Rectifier/regulator-phoenix
|
0453025 |
— | ||
|
3
|
3
0452764 Bracket-electric |
0452764 |
US $61.72 |
||
|
4
|
4
0452759 Pad-rubber |
0452759 |
US $8.52 |
||
|
5
|
5
0452310 Asm-unit,cdiIncl. 4; |
0452310 |
US $301.12 |
||
|
6
|
6
0452762 Pouch-tool,phoenix |
0452762 |
US $72.56 |
||
|
7
|
7
0450742 Strap(10) |
0450742 |
US $1.89 |
||
|
8
|
8
0452744 Fuse-harness,main,phoenix |
0452744 |
US $1.23 |
||
|
9
|
9
0452761 Asm-starter relay |
0452761 |
US $72.56 |
||
|
10
|
10
0452735
Asm-harness,main,wire
|
0452735 |
— | ||
|
11
|
11
0450721 Strap(10)* |
0450721 |
US $2.28 |
||
|
12
|
12
0452746
Battery
|
0452746 |
— | ||
|
13
|
13
0452767 Asm-cable,battery |
0452767 |
US $39.20 |
||
|
14
|
14
0452766
Indicator-reverse
|
0452766 |
— | ||
|
15
|
15
0452765
Indicator, neutral
|
0452765 |
— | ||
|
16
|
16
0452763 Bolt-hex,sems |
0452763 |
US $0.79 |
||
|
17
|
17
0452309 Asm-coil,ignition |
0452309 |
US $118.06 |
||
|
18
|
18
0453415 Asm-switch,main,phoenix |
0453415 |
US $70.39 |
||
|
19
|
19
0453371
Key-blank,replacement,lh grv
|
0453371 |
— | ||
|
19
|
19
0453013 Key-blank,replacement |
0453013 |
US $13.20 |
