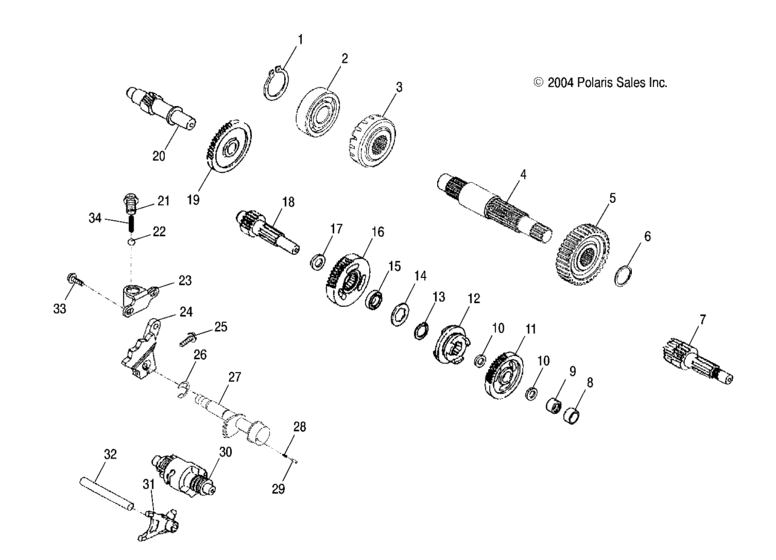

Transmission (A05PB20AA/AB/AC/AD) Diagram Polaris PHOENIX 200
- Model code
- A05PB20AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452789 Ring-retaining |
0452789 |
US $4.32 |
||
|
2
|
2
0452349 Bearing-ball |
0452349 |
US $38.41 |
||
|
3
|
3
0452531 Final ring gear |
0452531 |
US $110.46 |
||
|
4
|
4
0452528 Shaft |
0452528 |
US $88.64 |
||
|
5
|
5
0452530 Gear |
0452530 |
US $110.46 |
||
|
6
|
6
0452529 Circlip |
0452529 |
US $1.61 |
||
|
7
|
7
0452525 Shaft-drive |
0452525 |
US $124.06 |
||
|
8
|
8
0452512 Collar-shaft |
0452512 |
US $13.77 |
||
|
9
|
9
0452516 Bushing-spur gear |
0452516 |
US $3.61 |
||
|
10
|
10
0452513 Washer-flat |
0452513 |
US $2.70 |
||
|
11
|
11
0452515
Gear, spur
|
0452515 |
— | ||
|
12
|
12
0452517 Ratchet-shift |
0452517 |
US $76.81 |
||
|
13
|
13
0452339 Clip retainer* |
0452339 |
US $1.49 |
||
|
14
|
14
0452518 Washer-spline |
0452518 |
US $9.36 |
||
|
15
|
15
0452521 Bearing-needle |
0452521 |
US $22.03 |
||
|
16
|
16
0452520 Gear-reverse |
0452520 |
US $68.93 |
||
|
17
|
17
0452522 Washer-flat |
0452522 |
US $8.66 |
||
|
18
|
18
0452523 Shaft-transmission |
0452523 |
US $103.37 |
||
|
19
|
19
0452527 Gear-counter |
0452527 |
US $100.45 |
||
|
20
|
20
0452526 Shaft-counter |
0452526 |
US $81.22 |
||
|
21
|
21
0452635 Bolt-detent |
0452635 |
US $10.82 |
||
|
22
|
22
0452134 Ball-steel |
0452134 |
US $3.64 |
||
|
23
|
23
0452634 Housing |
0452634 |
US $43.72 |
||
|
24
|
24
0452633 Detent |
0452633 |
US $61.72 |
||
|
25
|
25
0452400 Bolt-hex,flange |
0452400 |
US $1.61 |
||
|
26
|
26
0452161 E-clip |
0452161 |
US $1.77 |
||
|
27
|
27
0452160 Spindle-shift |
0452160 |
US $56.14 |
||
|
28
|
28
0452162 Spring-drum sensor |
0452162 |
US $1.28 |
||
|
29
|
29
0452163 Roller-drum sensor |
0452163 |
US $2.28 |
||
|
30
|
30
0452159 Drum-gear shift asm |
0452159 |
US $206.78 |
||
|
31
|
31
0452157 Fork-shift |
0452157 |
US $60.22 |
||
|
32
|
32
0452158 Shaft-gear shift |
0452158 |
US $5.92 |
||
|
33
|
33
0452330 Bolt-hex,flange |
0452330 |
US $1.61 |
||
|
34
|
34
0452135
Spring, detent
|
0452135 |
— |
