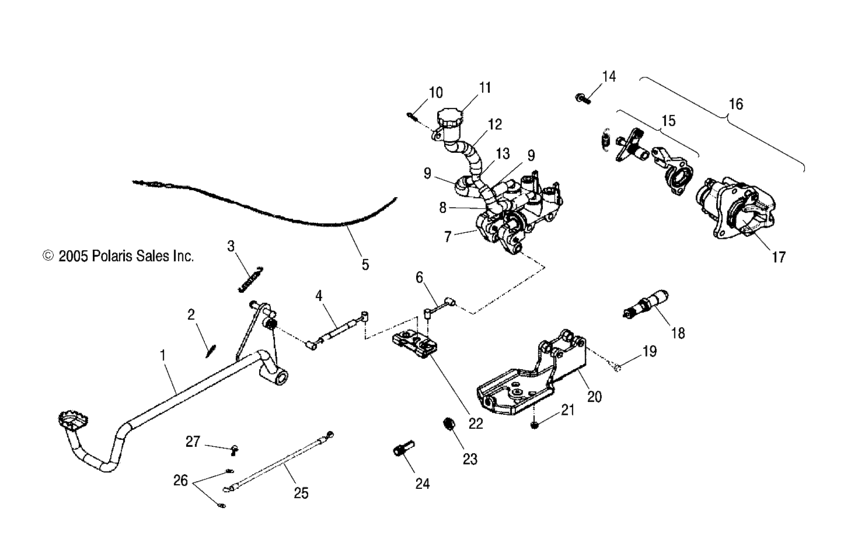

Brake, rear (A06PB20EA/EB) Diagram Polaris PHOENIX 200 QUAD
- Model code
- A06PB20EA
- Year
- 2006
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0452874
Lever-brake,foot,quad
|
0452874 |
— | ||
|
2
|
2
0450719
Pin-cotter(10)
|
0450719 |
— | ||
|
3
|
3
0452686 Spring-brake lever |
0452686 |
US $3.15 |
||
|
4
|
4
0452876
Cable-pedal,brake,brkt
|
0452876 |
— | ||
|
5
|
5
0452873 Cable-hand brake,rear,quad |
0452873 |
US $42.21 |
||
|
6
|
6
0452875
Cable-pedal,brake,mstr cyl
|
0452875 |
— | ||
|
7
|
7
0452878
Asm-master cyl,quad
Incl. 8,9,12,13; |
0452878 |
— | ||
|
8
|
8
0452879
Asm-sub,master cylinder
|
0452879 |
— | ||
|
9
|
9
0452881 Hose-brake |
0452881 |
US $8.17 |
||
|
10
|
10
0452816
Bolt-flange,hex
|
0452816 |
— | ||
|
11
|
11
0453023 Asm-cap,brake reservoir,rear |
0453023 |
US $15.26 |
||
|
12
|
12
0452880 Hose-brake |
0452880 |
US $36.61 |
||
|
13
|
13
0452882 Fitting-y,oil line |
0452882 |
US $23.94 |
||
|
14
|
14
0452888 Bolt-hex,washer face |
0452888 |
US $3.94 |
||
|
15
|
15
0453199
Asm-arm,brake lever
|
0453199 |
— | ||
|
16
|
16
0453201 Asm-brake caliperIncl. 15,17; |
0453201 |
US $283.61 |
||
|
17
|
17
0453200
Pad, brake, rear
|
0453200 |
— | ||
|
18
|
18
0453015 Switch-brake light,phoenix |
0453015 |
US $48.21 |
||
|
19
|
19
0452858 Bolt-hex,w/spring washer |
0452858 |
US $1 |
||
|
20
|
20
0452877 Mnt-mstr cyl/brake pedal |
0452877 |
US $92.16 |
||
|
21
|
21
0450282 Nut-lock(10) |
0450282 |
US $0.79 |
||
|
22
|
22
0452885 Connector-brk cable,foot pedal |
0452885 |
US $16.24 |
||
|
23
|
23
0452887
Nut-lock
|
0452887 |
— | ||
|
24
|
24
0452886
Bolt-insert
|
0452886 |
— | ||
|
25
|
25
0452884
Hose-brake
|
0452884 |
— | ||
|
26
|
26
0452872
Seal-stat-o,quad
|
0452872 |
— | ||
|
27
|
27
0452871 Bolt-banjo |
0452871 |
US $8.66 |
