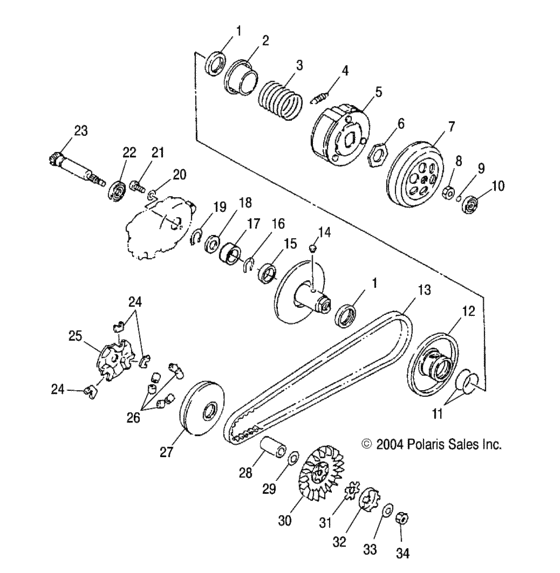

Drive pulley (A05KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A05KA05CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450211 Seal-oil |
0450211 |
US $5.92 |
||
|
2
|
2
0450218 Spring,seat,secondary |
0450218 |
US $12.20 |
||
|
3
|
3
0450216
Spring-compression
|
0450216 |
— | ||
|
4
|
4
0450205 Spring-weight,clutch(10) |
0450205 |
US $3.26 |
||
|
5
|
5
0450203
Carrier-clutch
|
0450203 |
— | ||
|
6
|
6
0450220
Nut(10)
|
0450220 |
— | ||
|
7
|
7
0450222
Cover-clutch
|
0450222 |
— | ||
|
8
|
8
0450224 Nut-hex (10) * |
0450224 |
US $3.75 |
||
|
9
|
9
0450226 O-ring (10) |
0450226 |
US $0.79 |
||
|
10
|
10
0450225 Bearing |
0450225 |
US $45.29 |
||
|
11
|
11
0450212 Ring-oil |
0450212 |
US $2.07 |
||
|
12
|
12
0450209 Wheel-slot,sliding,secondary |
0450209 |
US $58.43 |
||
|
13
|
13
0450238 V-belt |
0450238 |
US $70.39 |
||
|
14
|
14
0450214 Pin-guide(10) |
0450214 |
US $2.77 |
||
|
15
|
15
0451016 Bearing,ball |
0451016 |
US $35.46 |
||
|
16
|
16
0451017 Cir-clip(10) |
0451017 |
US $3.75 |
||
|
17
|
17
0451015 Bearing,needle |
0451015 |
US $35.46 |
||
|
18
|
18
0450200 Seal-oil |
0450200 |
US $15.75 |
||
|
19
|
19
0450198 Circlip-external (10) |
0450198 |
US $2.45 |
||
|
20
|
20
0450041 Washer-plain(10) |
0450041 |
US $3.75 |
||
|
21
|
21
0450158 Bolt-socket,hex(10) |
0450158 |
US $1.49 |
||
|
22
|
22
0450199 Bearing |
0450199 |
US $31.52 |
||
|
23
|
23
0450194 Primary drive,asm, |
0450194 |
US $163.49 |
||
|
24
|
24
0450233
Slider(3)*
|
0450233 |
— | ||
|
25
|
25
0450231
Plate-cam
|
0450231 |
— | ||
|
26
|
26
0450229
Roller-weight (6)
|
0450229 |
— | ||
|
27
|
27
0450227
Wheel-slot,sliding,primary
|
0450227 |
— | ||
|
28
|
28
0450235 Bushing |
0450235 |
US $17.73 |
||
|
29
|
29
0450654 Washer-plain(10) |
0450654 |
US $1.49 |
||
|
30
|
30
0450240 Sheave-fixed,primary* |
0450240 |
US $40.58 |
||
|
31
|
31
0450242 Washer-claw(10) |
0450242 |
US $3.75 |
||
|
32
|
32
0450574
Clutch-oneway
|
0450574 |
— | ||
|
33
|
33
0450247 Washer, spring |
0450247 |
US $1.89 |
||
|
34
|
34
0450249 Nut-flange(10)* |
0450249 |
US $1.89 |
