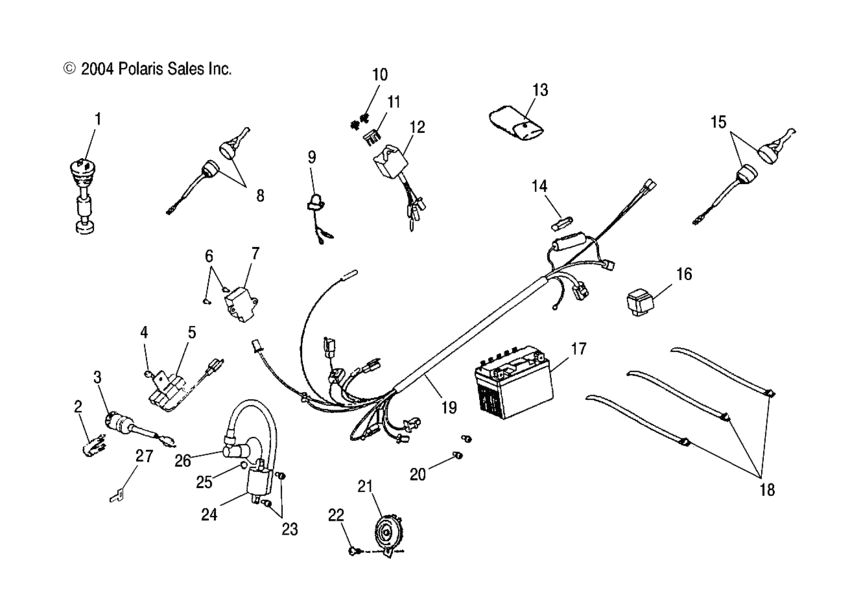

Electrical parts (A05KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A05KA05CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0453055 Gauge-oil level,89mm |
0453055 |
US $36.80 |
||
|
2
|
2
0450886 Clip,main switch |
0450886 |
US $3.94 |
||
|
3
|
3
0451808 Asm-switch,mainIncl. 2; |
0451808 |
US $89.60 |
||
|
4
|
4
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
5
|
5
0453315 Asm-resistor |
0453315 |
US $34.67 |
||
|
6
|
6
0450057 Bolt-pan,phillip |
0450057 |
US $0.79 |
||
|
7
|
7
0452061 Regulator-voltage |
0452061 |
US $107.52 |
||
|
8
|
8
0451693
Switch,safety
|
0451693 |
— | ||
|
9
|
9
0451146 Lamp-oil warning |
0451146 |
US $25.43 |
||
|
10
|
10
0451020
Screw-phillips
|
0451020 |
— | ||
|
11
|
11
0451019 Jumper |
0451019 |
US $2.28 |
||
|
12
|
12
0451021 Asm-cdi boxIncl. 10,11; |
0451021 |
US $218.61 |
||
|
13
|
13
0450563 Tool kit w/bag |
0450563 |
US $19.30 |
||
|
14
|
14
0450842
Fuse
|
0450842 |
— | ||
|
15
|
15
0452063 Tether-safety,engine shut-off |
0452063 |
US $61.20 |
||
|
16
|
16
0450555 Relay,starter,asm, |
0450555 |
US $107.52 |
||
|
17
|
17
4011181 Battery-yuasa ytx5l,youth |
4011181 |
US $75.79 |
||
|
18
|
18
0450559 Strap(10) |
0450559 |
US $0.79 |
||
|
19
|
19
0452060
Harness-main,wire
Incl. 14; |
0452060 |
— | ||
|
20
|
20
0450888 Bolt/nut,battery(10)* |
0450888 |
US $1.89 |
||
|
21
|
21
0451695 Horn |
0451695 |
US $31.43 |
||
|
22
|
22
0450701 Bolt-hex washer(10) * |
0450701 |
US $1.89 |
||
|
23
|
23
0450556 Bolt-hex (10) |
0450556 |
US $1.89 |
||
|
24
|
24
0450753 Ignition coil asm,Incl. 26; |
0450753 |
US $61.06 |
||
|
25
|
25
0450890 Washer-star(10) |
0450890 |
US $0.79 |
||
|
26
|
26
0451162 Asm,cover-spark plug (cap&base) |
0451162 |
US $26.41 |
||
|
27
|
27
0453371
Key-blank,replacement,lh grv
|
0453371 |
— | ||
|
27
|
27
0453013 Key-blank,replacement |
0453013 |
US $13.20 |
