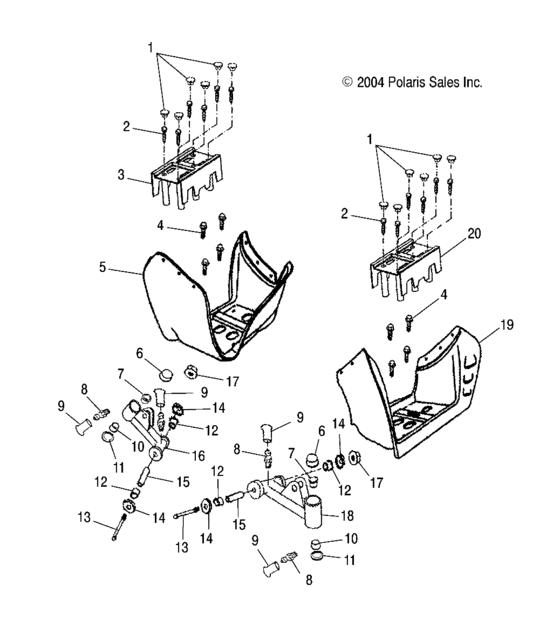

Swing arm/footrest (A05KA05CA) Diagram Polaris PREDATOR 50
- Model code
- A05KA05CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0451765 Grommet-footrest |
0451765 |
US $6.20 |
||
|
2
|
2
0450667 Bolt,phillips(10) |
0450667 |
US $3.94 |
||
|
3
|
3
0452050 Footwell-removeable,rh |
0452050 |
US $185.61 |
||
|
4
|
4
0450340
Bolt
|
0450340 |
— | ||
|
5
|
5
0451330-070
Footwell-rh,blk
|
0451330-070 |
— | ||
|
6
|
6
0451811 Cover-suspension arm |
0451811 |
US $5.90 |
||
|
7
|
7
0450313 Bushing, grease retainer * |
0450313 |
US $4.59 |
||
|
8
|
8
0450320 Valve,grease |
0450320 |
US $5.25 |
||
|
9
|
9
0450321 Cap,rubber |
0450321 |
US $2.63 |
||
|
10
|
10
0450314 Bushing, grease retainer * |
0450314 |
US $4.59 |
||
|
11
|
11
0450317 Rubber,dustproof* |
0450317 |
US $6.60 |
||
|
12
|
12
0451763
Bushing
|
0451763 |
— | ||
|
13
|
13
0451764 Bolt-hex flange,10mm |
0451764 |
US $8.66 |
||
|
14
|
14
0451762 Cap-rubber |
0451762 |
US $7.09 |
||
|
15
|
15
0451761 Spacer |
0451761 |
US $8.17 |
||
|
16
|
16
0452046
Asm., suspension arm, rh
|
0452046 |
— | ||
|
16
|
16
0452048
Arm-suspension,rh
|
0452048 |
— | ||
|
17
|
17
0450249 Nut-flange(10)* |
0450249 |
US $1.89 |
||
|
18
|
18
0452045
Asm., suspension arm, lh
|
0452045 |
— | ||
|
18
|
18
0452047
Arm-suspension,lh
|
0452047 |
— | ||
|
19
|
19
0451329-070
Footwell-lh,blk
|
0451329-070 |
— | ||
|
20
|
20
0452049 Footwell-removeable,lh |
0452049 |
US $185.61 |
