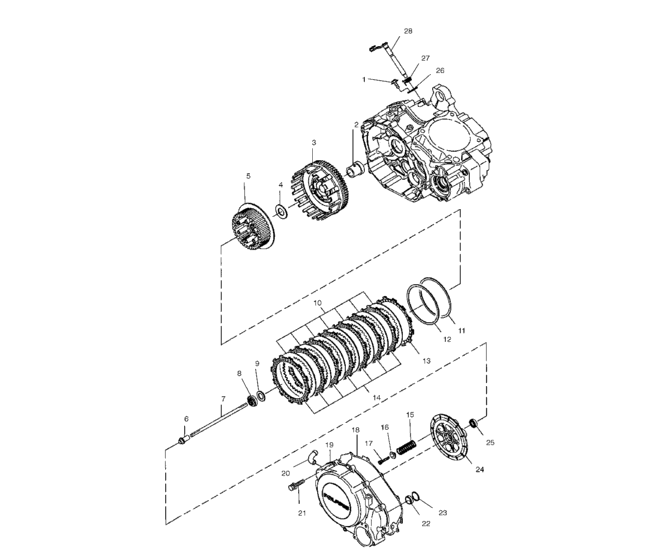

Clutch (A03GJ50AA/AB) Diagram Polaris PREDATOR 500
- Model code
- A03GJ50AA/AB
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3084877 Bolt,flange(10) |
3084877 |
US $5.25 |
||
|
2
|
2
3088077 Collar,distance |
3088077 |
US $51.70 |
||
|
3
|
3
3088174
Asm,,outer clutch
|
3088174 |
— | ||
|
4
|
4
3088186
Washer,thrust
|
3088186 |
— | ||
|
5
|
5
3088180
Asm., center, clutch
|
3088180 |
— | ||
|
6
|
6
3088081 Pusher |
3088081 |
US $46.69 |
||
|
7
|
7
3088080
Rod,push
|
3088080 |
— | ||
|
8
|
8
3086285 Nut,lock |
3086285 |
US $7.68 |
||
|
9
|
9
3086286 Washer-lock |
3086286 |
US $9.85 |
||
|
10
|
10
3088184 Plate,clutch |
3088184 |
US $28.58 |
||
|
11
|
11
3088181 Seat,judder spring |
3088181 |
US $33.50 |
||
|
12
|
12
3088182 Spring,judder |
3088182 |
US $40.16 |
||
|
13
|
13
3088185 Disk b,clutch friction * |
3088185 |
US $31.52 |
||
|
14
|
14
3088183 Disk a,clutch friction * |
3088183 |
US $31.52 |
||
|
15
|
15
3088177 Spring,clutch |
3088177 |
US $8.17 |
||
|
16
|
16
3088176
Washer,clutch spring
|
3088176 |
— | ||
|
17
|
17
3088175
Bolt
|
3088175 |
— | ||
|
18
|
18
3088074
Gasket
|
3088074 |
— | ||
|
19
|
19
3088071
Asm,,clutch cover
Incl. 20,22,23; |
3088071 |
— | ||
|
20
|
20
3085850 Asm,, pipe |
3085850 |
US $42.75 |
||
|
21
|
21
3084874 Bolt, flange |
3084874 |
US $1.77 |
||
|
22
|
22
3088072 Crank,oil seal |
3088072 |
US $15.75 |
||
|
23
|
23
3088073 Snap ring,inner |
3088073 |
US $1.49 |
||
|
24
|
24
3088178 Disk,clutch pressure |
3088178 |
US $32.52 |
||
|
25
|
25
3088179 Bearing,ball |
3088179 |
US $16.75 |
||
|
26
|
26
3088082 Plate,release |
3088082 |
US $10.15 |
||
|
27
|
27
3088079 Spring,release |
3088079 |
US $3.94 |
||
|
28
|
28
3088078
Asm,,release shaft
|
3088078 |
— |
