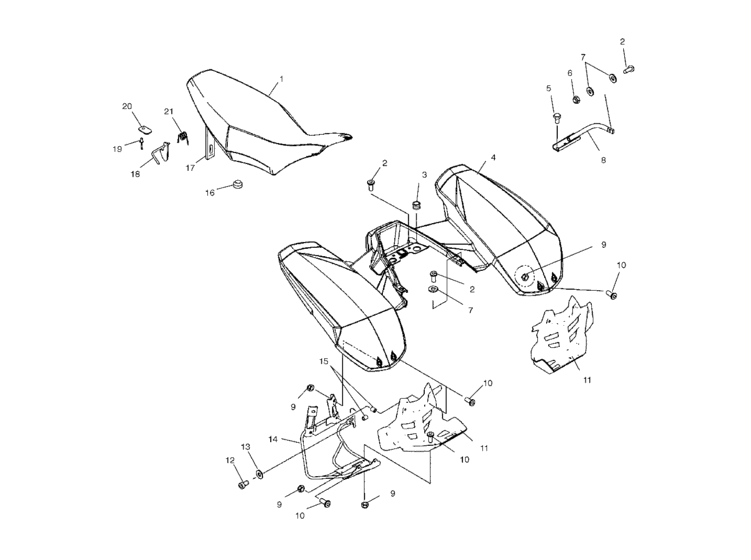

Rear cab and seat (A03GJ50AA/AB) Diagram Polaris PREDATOR 500
- Model code
- A03GJ50AA/AB
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2632489
Asm-cover,seat **
|
2632489 |
— | ||
|
1
|
1
2632490
Asm-seat
|
2632490 |
— | ||
|
2
|
2
7518196 Scr-10-24x3/4 ph/tx/tri-sems y |
7518196 |
US $0.79 |
||
|
3
|
3
5411042
Grommet
|
5411042 |
— | ||
|
4
|
4
5434437-434
Cab, rear, silver vapor metallic
AA;If built before 5/06/03; |
5434437-434 |
— | ||
|
4
|
4
5435231-434
Cab, rear, silver vapor metallic
AA;If built after 5/06/03; |
5435231-434 |
— | ||
|
4
|
4
5434437-177
Cab, rear, black metallic
AB;If built before 5/06/03; |
5434437-177 |
— | ||
|
4
|
4
5435231-177 Cab-rear,blk met **AB;If built after 5/06/03; |
5435231-177 |
US $349.62 |
||
|
5
|
5
7515199 Screw(10) * |
7515199 |
US $1.89 |
||
|
6
|
6
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
7
|
7
7555792 Washer |
7555792 |
US $2.45 |
||
|
8
|
8
1014170-385
Support, rear cab, lh, silver
If built before 5/27/03; |
1014170-385 |
— | ||
|
8
|
8
1014171-385
Support, rear cab, rh, silver
If built before 5/27/03; |
1014171-385 |
— | ||
|
8
|
8
1014603-385
Support, rear cab, lh, silver
If built after 5/27/03; |
1014603-385 |
— | ||
|
8
|
8
1014604-385
Support, rear cab, rh, silver
If built after 5/27/03; |
1014604-385 |
— | ||
|
9
|
9
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
10
|
10
7512297 Screw |
7512297 |
US $4.43 |
||
|
11
|
11
5434432-070 Pocket-heel,lh,blk ** |
5434432-070 |
US $25.43 |
||
|
11
|
11
5434433-070
Pocket-heel,rh,blk **
|
5434433-070 |
— | ||
|
12
|
12
7515136 Screw(10) *If built before 9/20/02; |
7515136 |
US $1.89 |
||
|
12
|
12
7512297 ScrewIf built after 9/20/02; |
7512297 |
US $4.43 |
||
|
13
|
13
7552801 Washer, spring lock(10)If built after 9/20/02; |
7552801 |
US $2.45 |
||
|
13
|
13
7552604 Washer(10)If built before 9/20/02; |
7552604 |
US $2.45 |
||
|
14
|
14
1013991-067
Support, heel, lh, black
If built before 1/20/03; |
1013991-067 |
— | ||
|
14
|
14
1013992-067
Support, heel, rh, black
If built before 1/20/03; |
1013992-067 |
— | ||
|
14
|
14
1014371-067
Weld-support,heel pocket,lh,bk
If built after 1/20/03; |
1014371-067 |
— | ||
|
14
|
14
1014372-067
Weld-support,heel pocket,rh,bk
If built after 1/20/03; |
1014372-067 |
— | ||
|
15
|
15
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
16
|
16
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
17
|
17
5431501 Strap |
5431501 |
US $8.17 |
||
|
18
|
18
1013941 Weld-seat latch |
1013941 |
US $48.84 |
||
|
19
|
19
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
20
|
20
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
21
|
21
7041607
Spring,latch,light
|
7041607 |
— |
