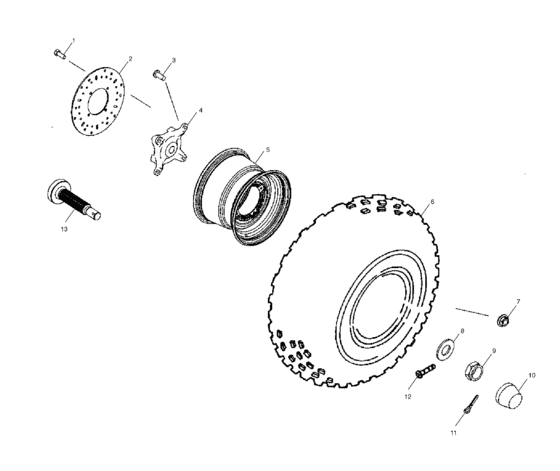

Front wheel (A11RB42AA/A11RD50AA/AB/A11RF50AA) Diagram Polaris RANGER 400/500
- Model code
- A11RB42AA/A11RD50AA/AB/A1
- Year
- SERIES 11
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512325 Bolt |
7512325 |
US $5.25 |
||
|
2
|
2
5244314 Disc,brake,front |
5244314 |
US $88.60 |
||
|
3
|
3
7515523 StudIf built before 10/07/02; |
7515523 |
US $4.73 |
||
|
3
|
3
7515513 Stud(10) *If built after 10/07/02; |
7515513 |
US $19.60 |
||
|
4
|
4
5131935
Hub, wheel, 4wd
|
5131935 |
— | ||
|
5
|
5
1520349-067
Rim, front, black
AA; |
1520349-067 |
— | ||
|
5
|
5
1520696-455
Rim, front, break-up
AB; |
1520696-455 |
— | ||
|
6
|
6
5411397
Tire,f, 25x10-12__uu0
25x10-12; AA; |
5411397 |
— | ||
| replacement | |||||
|
6
|
6
5413961 Tire-25x10-12,nhs,48925x10-12; AA; |
5413961 |
US $263.69 |
||
|
6
|
6
5412302
Rawhide grip 25-8,00-12nhs
25x10-12; AB; |
5412302 |
— | ||
|
7
|
7
7542459 Nut, flanged(10) |
7542459 |
US $65.60 |
||
|
8
|
8
7556004 Washer |
7556004 |
US $5.22 |
||
|
9
|
9
7542810 Nut, slotted |
7542810 |
US $3.94 |
||
|
10
|
10
5411164
Cover, dust, hub
|
5411164 |
— | ||
|
11
|
11
7661401 Pin,cotter(10) |
7661401 |
US $3.94 |
||
|
12
|
12
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
13
|
13
1821088
Spindle-front
2x4; |
1821088 |
— | ||
