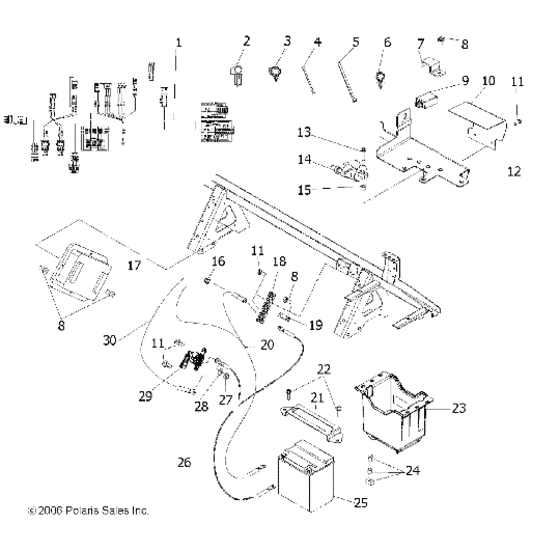

Electrical/battery (R07RB50AA/RH50AA) Diagram Polaris RANGER 500 2X4/4X4
- Model code
- R07RB50AA/RH50AA
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2410875 Harness-chassis,500 carb |
2410875 |
US $366.33 |
||
|
2
|
2
7670102 Clip |
7670102 |
US $5.25 |
||
|
3
|
3
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
4
|
4
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
5
|
5
7080761 Cable tie,14" |
7080761 |
US $3.26 |
||
|
6
|
6
7670116 Clip,routing,,472 b,d,,hinged2x4; |
7670116 |
US $3.94 |
||
|
7
|
7
5246747 Brkt-cdi,digital,long |
5246747 |
US $4.94 |
||
|
8
|
8
7512018 Screw(10) |
7512018 |
US $0.79 |
||
|
9
|
9
3089238 Cdi system |
3089238 |
US $427.70 |
||
|
10
|
10
5245617
Brkt-elect cover
|
5245617 |
— | ||
|
11
|
11
7518196 Scr-10-24x3/4 ph/tx/tri-sems y |
7518196 |
US $0.79 |
||
|
13
|
13
7512025 Screw |
7512025 |
US $3.26 |
||
|
14
|
14
3085227
Coil,ignition *
|
3085227 |
— | ||
|
15
|
15
7556318 Spacer-,26x,50x,31 |
7556318 |
US $1 |
||
|
16
|
16
7546601
Nut, nylok(10)
|
7546601 |
— | ||
|
17
|
17
4011089 Module-500 ecm |
4011089 |
US $478.59 |
||
|
18
|
18
4011699
Block, terminal
|
4011699 |
— | ||
|
19
|
19
5248659 Strap-ground |
5248659 |
US $1.28 |
||
|
20
|
20
4010926 Cable-ground,10" |
4010926 |
US $16.24 |
||
|
20
|
20
4011214 Cable-ground,78"/10" |
4011214 |
US $81.22 |
||
|
21
|
21
5248374 Brkt-battery strap |
5248374 |
US $19.29 |
||
|
22
|
22
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
23
|
23
5434037 Box-battery |
5434037 |
US $35.12 |
||
|
24
|
24
2202802
Kit-battery bolt
|
2202802 |
— | ||
|
25
|
25
4010630 Battery-30 amp,top mount |
4010630 |
US $151.64 |
||
|
26
|
26
4011213 Cable-positive,split |
4011213 |
US $55.53 |
||
|
27
|
27
7547283
Nut-1/4-20 hx jam-y
|
7547283 |
— | ||
|
28
|
28
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
29
|
29
4010947
Solenoid, starter
|
4010947 |
— | ||
| replacement | |||||
|
29
|
29
4012001 Solenoid-starter-c1100 |
4012001 |
US $118.11 |
||
|
30
|
30
4011249 Cable-sol/starter |
4011249 |
US $30.08 |
||
