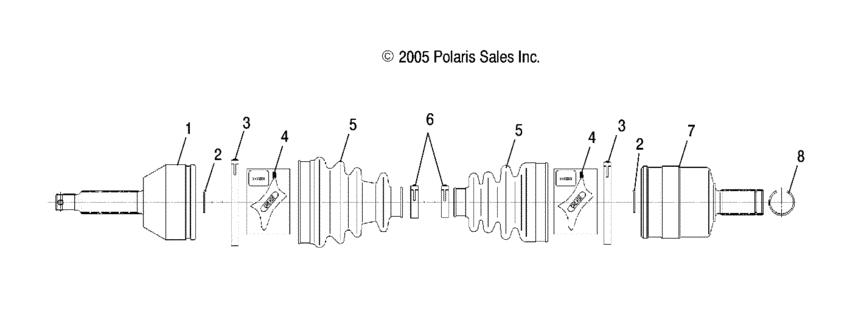

Shaft, drive, rear lh, rh (R07RB50AA/RH50AA) Diagram Polaris RANGER 500 2X4/4X4
- Model code
- R07RB50AA/RH50AA
- Year
- 2007
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1590362 Joint-cv,rear-gkn |
1590362 |
US $289.52 |
||
|
2
|
2
7710505 Ring,retaining |
7710505 |
US $1.49 |
||
|
3
|
3
1350044 Clamp-large,btb |
1350044 |
US $6.69 |
||
|
4
|
4
1350047 Grease-50g btb |
1350047 |
US $15.26 |
||
|
5
|
5
2203108
Kit-boot, rear
|
2203108 |
— | ||
|
6
|
6
1350043 Clamp-small,btb |
1350043 |
US $6.69 |
||
|
7
|
7
1590407 Joint-plunging, lhLH; |
1590407 |
US $334.83 |
||
|
7
|
7
1590408
Joint-plunging
RH; |
1590408 |
— | ||
|
8
|
8
7710578 Spring-ring |
7710578 |
US $5.92 |
