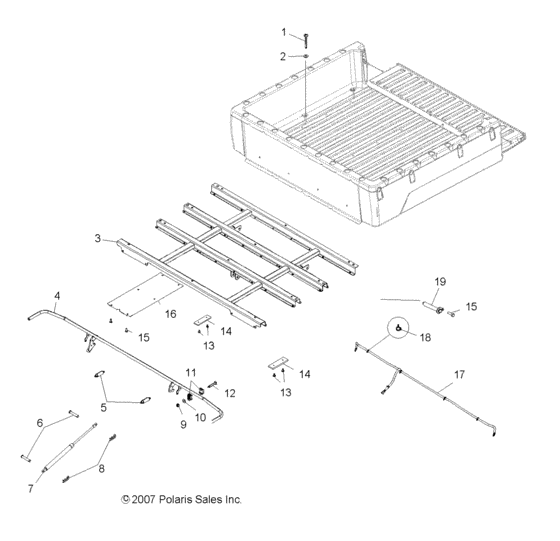

Body, box mounting (R09RB50AF) Diagram Polaris RANGER 500 2X4 CARB
- Model code
- R09RB50AF
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7518375 Scr-1/4-20x1,50 tr/tx-m |
7518375 |
US $1.75 |
||
|
2
|
2
7556329 Washer-,281x1,00x,051 |
7556329 |
US $1.09 |
||
|
3
|
3
1015309-329
Weld-box support,long,blk
|
1015309-329 |
— | ||
|
4
|
4
1016235-067 Weld-box latch,blk |
1016235-067 |
US $183.17 |
||
|
5
|
5
7041687 Spring |
7041687 |
US $7.88 |
||
|
6
|
6
7661878 Pin-clevis,1/2 x 1 3/4 |
7661878 |
US $3.75 |
||
|
7
|
7
7043232 Shock-dump box,6x6 |
7043232 |
US $71.89 |
||
|
8
|
8
7661067 Clip-hitchpin ,148x3 1/16 |
7661067 |
US $3.75 |
||
|
9
|
9
7542343 Nut,flange |
7542343 |
US $6.56 |
||
|
10
|
10
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
11
|
11
5434226 Bushing-box,latch |
5434226 |
US $2.98 |
||
|
12
|
12
7515319 Bolt |
7515319 |
US $3.26 |
||
|
13
|
13
7621418 Rivet,pop(50)* |
7621418 |
US $1.89 |
||
|
14
|
14
5412321 Bumper-box base |
5412321 |
US $6.11 |
||
|
15
|
15
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
16
|
16
5249127
Shield-heat,exhaust
|
5249127 |
— | ||
|
17
|
17
2410877
Harness-cargo box
|
2410877 |
— | ||
|
18
|
18
7670116 Clip,routing,,472 b,d,,hinged |
7670116 |
US $3.94 |
||
|
19
|
19
1016695-329 Weld-pin,box hinge,blk |
1016695-329 |
US $7.09 |
