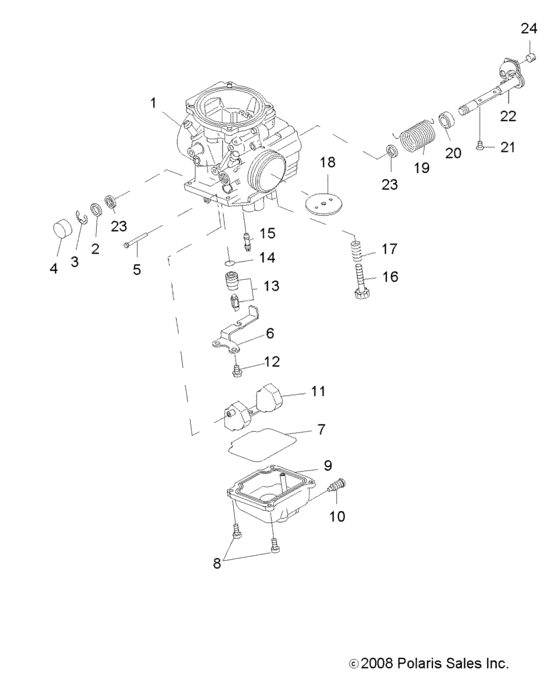

Engine, carburetor, lower (R09RB50AF) Diagram Polaris RANGER 500 2X4 CARB
- Model code
- R09RB50AF
- Year
- 2009
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3131441 Asm-carburetorIncl. All less 24; |
3131441 |
US $673.58 |
||
|
3
|
3
3130518 E-ring |
3130518 |
US $2.28 |
||
|
4
|
4
3130519 Cap |
3130519 |
US $8.17 |
||
|
5
|
5
3130361 Pin, float |
3130361 |
US $8.17 |
||
|
6
|
6
3130594 Plate |
3130594 |
US $18.32 |
||
|
7
|
7
3130532 O-ring |
3130532 |
US $19.69 |
||
|
8
|
8
3130520 Screw |
3130520 |
US $1.77 |
||
|
9
|
9
3131212 Float body,asm |
3131212 |
US $118.06 |
||
|
10
|
10
3130521 Screw |
3130521 |
US $14.09 |
||
|
11
|
11
3130529 Float asm, |
3130529 |
US $92.16 |
||
|
12
|
12
3130591 Screw(10) |
3130591 |
US $1.89 |
||
|
13
|
13
3131361 Valve-needle |
3131361 |
US $56.14 |
||
|
14
|
14
3130533 O-ring |
3130533 |
US $26.30 |
||
|
15
|
15
3130526 Jet,pilot,#42,5 |
3130526 |
US $18.32 |
||
|
16
|
16
3131423 Screw-adjust |
3131423 |
US $14.09 |
||
|
17
|
17
3130836 Spring |
3130836 |
US $6.11 |
||
|
18
|
18
3130502 Valve,throttle,100 |
3130502 |
US $40.58 |
||
|
19
|
19
3130589 Spring |
3130589 |
US $14.28 |
||
|
20
|
20
3130514 Ring |
3130514 |
US $4.34 |
||
|
21
|
21
3130501 Screw |
3130501 |
US $1.77 |
||
|
22
|
22
3130513 Shaft asm,throttle |
3130513 |
US $78.79 |
||
|
23
|
23
3130515 Seal |
3130515 |
US $14.77 |
||
|
24
|
24
3130543 Guide,cable |
3130543 |
US $19.30 |
