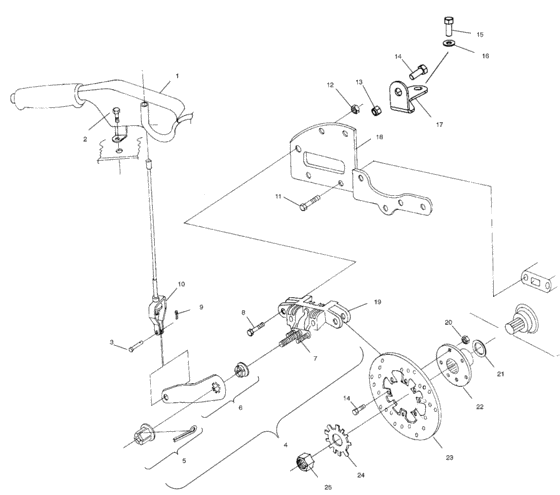

Middle brake / parking brake (A99RF50AA) Diagram Polaris RANGER 500
- Model code
- A99RF50AA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1930901
Lever asm,park brake
|
1930901 |
— | ||
|
1
|
1
5433432 Handle-repl parking brake |
5433432 |
US $7.09 |
||
|
1
|
1
2410149
Switch,parking,brake
|
2410149 |
— | ||
|
2
|
2
7512399 Screw10; |
7512399 |
US $3.94 |
||
|
3
|
3
7661037 Pin,clevis |
7661037 |
US $3.75 |
||
|
4
|
4
1910285
Caliper asm,park,(ranger)
RANGER;Incl. 5-7,19; |
1910285 |
— | ||
|
5
|
5
2201388
Lever,cam,park brake
|
2201388 |
— | ||
|
6
|
6
2201389 Nut,castle,kit |
2201389 |
US $82.72 |
||
|
7
|
7
2201390
Push pin,park brake
|
2201390 |
— | ||
|
8
|
8
7517546 Screw,shoulder,hex soc, |
7517546 |
US $7.68 |
||
|
9
|
9
7661644 Pin,hitch(10) *10; |
7661644 |
US $0.79 |
||
|
10
|
10
7080797
Cable,parkbrake,(ranger)
RANGER; |
7080797 |
— | ||
|
12
|
12
7547090 Nut-1/2-13,thin ht,flex-z |
7547090 |
US $3.75 |
||
|
13
|
13
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
14
|
14
7512365 Screw, cap(10)10; |
7512365 |
US $1.49 |
||
|
15
|
15
7515363
Bolt
10; |
7515363 |
— | ||
| replacement | |||||
|
15
|
15
7512325 Bolt10; |
7512325 |
US $5.25 |
||
|
16
|
16
7552606 Washer10; |
7552606 |
US $2.45 |
||
|
17
|
17
5244097-067 Brkt,brake mount support,blk |
5244097-067 |
US $14.28 |
||
|
18
|
18
5242482-067
Brkt,mt,r,caliper,blk
|
5242482-067 |
— | ||
|
19
|
19
2201387
Brake pad,park,ranger
|
2201387 |
— | ||
|
20
|
20
7542319 Nut flex loc10; |
7542319 |
US $5.43 |
||
|
21
|
21
5131929
Desc not_available
|
5131929 |
— | ||
|
22
|
22
1040668 Hub,brake,mid,axle |
1040668 |
US $167.41 |
||
|
23
|
23
1930881
Disc,brake,vented
If built before 7/01/00; |
1930881 |
— | ||
|
23
|
23
1910518 Disc-brakeIf built after 7/01/00; |
1910518 |
US $193.01 |
||
|
24
|
24
5211856
Washer,tablock,pinion
|
5211856 |
— | ||
|
25
|
25
7547047
Nut,spcl,
|
7547047 |
— | ||
